This Temperature Humidity Vibration Chamber integrates temperature, humidity, and vibration environments to simulate the complex environmental conditions that products may encounter during transportation, storage, and use.
Item No :
GT-F70Order(MOQ) :
1

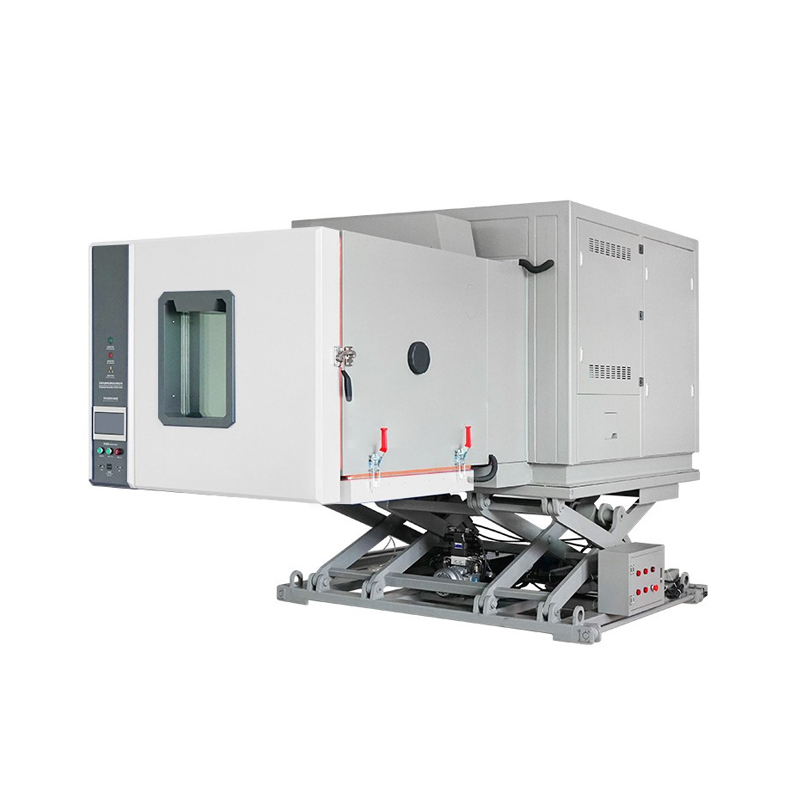

This Rapid Thermal Shock Three-Combined Environmental Test Chamber is widely used in aerospace, automotive manufacturing (especially new energy vehicles), electronics and communications, rail transportation, new energy, semiconductors, scientific research and education, and military industries for verifying the environmental adaptability and reliability of complete machines, components, electrical appliances, instruments, and materials, as well as for defect screening.
This test equipment is prohibited for testing and storage of the following items:
1. Flammable, explosive and highly volatile substances;
2. Corrosive substances;
3. Biological samples;
4. Specimens with strong electromagnetic emission sources
GB/T5170.2-2008 Test Equipment for Temperature
GB/T2423.1-2008(IEC60068-2-1:2007) Low temperature test Ab
GB/T2423.2-2008(IEC60068-2-2:2007) High temperature test Bb
GB/T5170.5-2008 Test Equipment for Damp Heat
GB/T2423.3-2006(IEC60068-2-78:2007) Constant damp heat test Cab
GB/T2423.4-2008(IEC68-2—30)Cyclic damp heat test Db
GJB150.3-2009 High temperature test
GJB150.4-2009 Low temperature test
GJB150.9A-2009 Damp heat test
（Remark: Volumetric thermal capacity load ≤80kg/m³ steel, no active heat load.）
|
Capacity |
1000L |
|
Internal Chamber Dimensions |
1000 × 1000 × 1000 mm (W×D×H) |
|
External Chamber Dimensions |
2000 × 1450 × 3260 mm (W×D×H, protruding parts excluded) |
|
Equipment Weight |
Approx. 1,900 kg |
|
Equipment conditions |
Temperature: 5～35℃ Relative Humidity ≤85%RH Air Pressure 86～106 kPa (No specimen inside the chamber ) |
|
Testing Temperature Range |
-40℃～+150℃ |
|
Temperature Fluctuation Tolerance |
≤±0.5℃ |
|
Temperature Deviation |
≤±2.0℃ |
|
Temperature Uniformity |
≤2.0℃ |
|
Temperature Rise Rate |
-40℃ → +70℃: Average full-range rate ≥3℃/min (loaded with 5kg aluminum ingot, no heat source) |
|
Temperature Drop Rate |
+70℃ → -40℃: Average full-range rate ≥1℃/min (loaded with 5kg aluminum ingot, no heat source) |
|
Humidity Control Range |
20～98%RH (Refer to the temperature & humidity controllable range diagram, no active thermal load) |
|
Relative Humidity Deviation |
≤±3%RH when RH＞75%RH (empty chamber, constant state) ≤±5%RH when RH≤75%RH (empty chamber, constant state) |
High-Precision Climate Simulation for Reliable Material & Electronic Reliability Testing -This constant temperature humidity chamber features programmable control, wide temperature and humidity ranges, and complies with international standards. Main Features: ✔ Wide Testing Range: Temperature: -60°C to +150°C | Humidity: 20% to 98% RH. ✔ Smart Control: 7-inch programmable color touch screen controller with USB data export. ✔ Premium Components: Equipped with imported French Tecumseh compressor. ✔ International Standards: Fully complies with ISO, ASTM, IEC, JIS, BS.
Benchtop temperature and humidity test chamber delivers precise environmental control through stable temperature and humidity settings for conditioning of samples prior to testing. Its compact footprint allows it to be easily placed on a stand or workbench, perfectly suiting laboratories and testing areas where space is limited — without compromising build quality or testing performance.
Thermal Shock Test Chamber consists of two independent compartments. The thermal shock machine or material being tested is placed in a test basket or tray and then transferred between the hot and cold chambers. The transfer process is rapid, ensuring quick temperature changes that simulate real-world conditions. This enables manufacturers to evaluate the impact of temperature differentials on product integrity, performance, and reliability.
High Low Temperature Test Chamber is devices specifically designed to simulate extreme high- and low-temperature environments, enabling the assessment of the durability, functionality and performance of materials and components following prolonged exposure. Ideal for material durability testing in electronics, aerospace, and industrial applications.
Walk In Environmental Test Chamber, suitable for test instrumentation materials, electricians, electronic products, household appliances, auto parts, chemical coatings,various electronic components and parts of other related products are stored and transported under high temperature and low temperature environment. The adaptability test is used to evaluate its performance indexes.
Salt spray test chamber is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
This Temperature Humidity Vibration Chamber integrates temperature, humidity, and vibration environments to simulate the complex environmental conditions that products may encounter during transportation, storage, and use.
