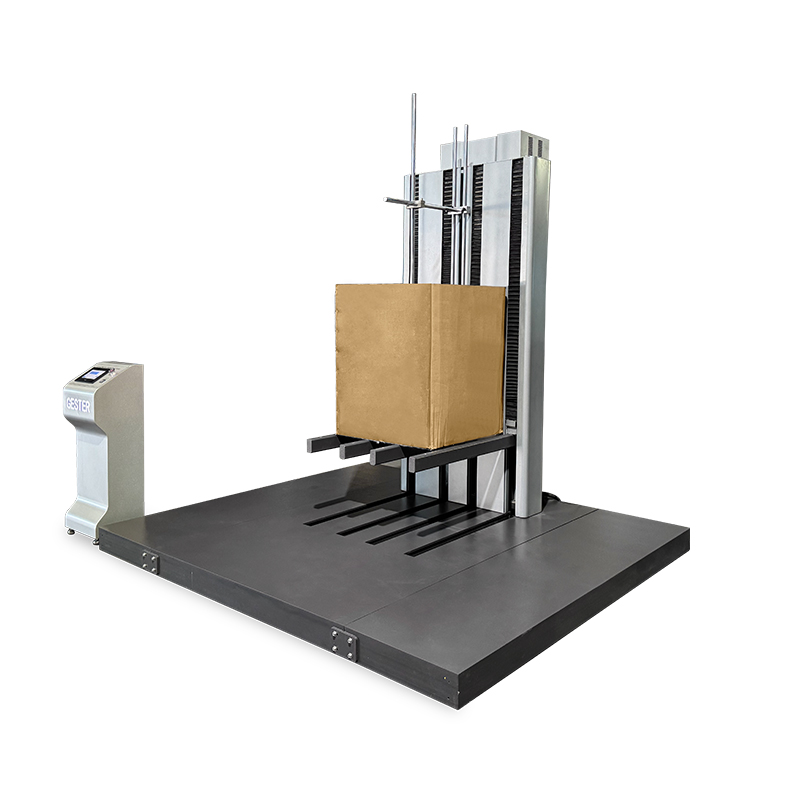

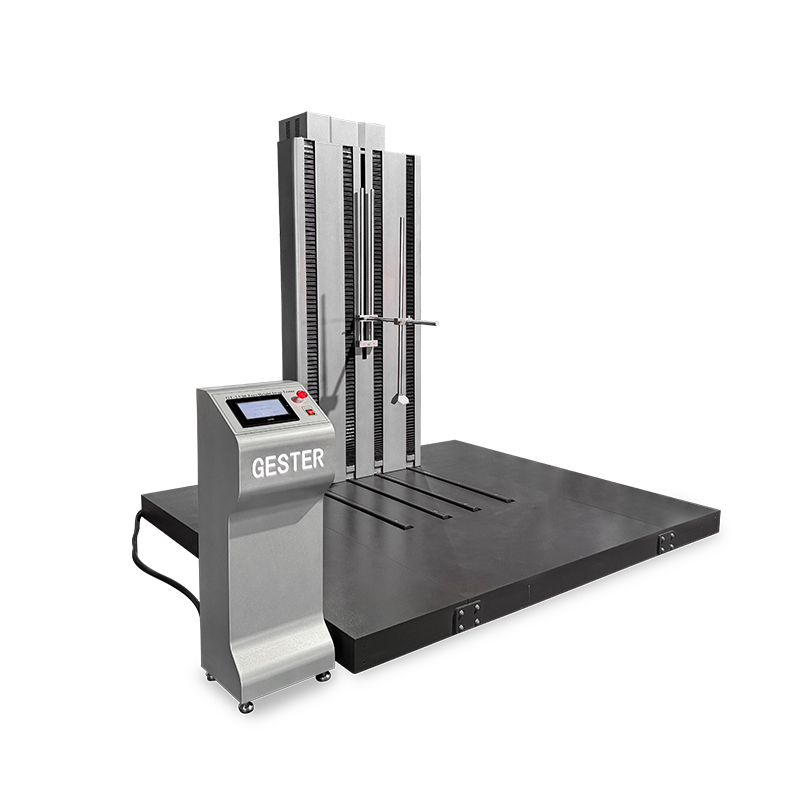

1. The zero drop tester consists of a "E" fork which can be moved down quickly. The tested goods are placed in balance according to the test requirements (face, edge, angle test).
2. When testing, the pallet moves down quickly,separate from the specimen, before the test package goods dropped to the floor, under the effect of high shock absorber, "E" fork has been embedded in the floor. Theoretically, the zero drop tester can do the test from zero height to maximum drop height.
3. Drop height set through the test requirements, and automatically do the drop test according to the set height. Using the PLC programming man-machine interface control, simple, convenient and powerful.
|
Model |
GT-LC06 |
|
Control mode |
PLC touch screen |
|
Maximum test load |
200kg |
|
Maximum specimen size |
2000×1000×1000(mm, L×W×H) |
|
Test height |
0~1200mm adjustable |
|
Test aspects |
Edge, Angle, Surface |
|
Drive |
Motor drive |
|
Protection device |
Induction type protection device |
|
Material of Impact plate |
45# steel, solid steel plate |
|
Reading |
Digital |
|
Bracket structure |
45# steel |
|
Transmission |
Imported linear slider and copper sleeve, 45# steel |
|
Accelerating device |
Mechanical(Ensure that the speed of the bracket falls faster than the drop rate of the test product) |
|
Drop mode |
Electromagnetic and pneumatic integrated |
|
Power supply |
220V, 50HZ, 5KW |
|
Weight |
About 1800KG |
|
Dimension |
2200×1500×2000mm |
High-Precision Climate Simulation for Reliable Material & Electronic Reliability Testing -This constant temperature humidity chamber features programmable control, wide temperature and humidity ranges, and complies with international standards. Main Features: ✔ Wide Testing Range: Temperature: -60°C to +150°C | Humidity: 20% to 98% RH. ✔ Smart Control: 7-inch programmable color touch screen controller with USB data export. ✔ Premium Components: Equipped with imported French Tecumseh compressor. ✔ International Standards: Fully complies with ISO, ASTM, IEC, JIS, BS.
Benchtop temperature and humidity test chamber delivers precise environmental control through stable temperature and humidity settings for conditioning of samples prior to testing. Its compact footprint allows it to be easily placed on a stand or workbench, perfectly suiting laboratories and testing areas where space is limited — without compromising build quality or testing performance.
Thermal Shock Test Chamber consists of two independent compartments. The thermal shock machine or material being tested is placed in a test basket or tray and then transferred between the hot and cold chambers. The transfer process is rapid, ensuring quick temperature changes that simulate real-world conditions. This enables manufacturers to evaluate the impact of temperature differentials on product integrity, performance, and reliability.
High Low Temperature Test Chamber is devices specifically designed to simulate extreme high- and low-temperature environments, enabling the assessment of the durability, functionality and performance of materials and components following prolonged exposure. Ideal for material durability testing in electronics, aerospace, and industrial applications.
Walk In Environmental Test Chamber, suitable for test instrumentation materials, electricians, electronic products, household appliances, auto parts, chemical coatings,various electronic components and parts of other related products are stored and transported under high temperature and low temperature environment. The adaptability test is used to evaluate its performance indexes.
Salt spray test chamber is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
A Transportation Vibration Tester designed to protect your goods from the shocks of the road. Simulated transport vibration testing machine used for vibration test of toys, electronics, furniture, gifts, ceramics, communications, equipment, computers and car parts. Vibration Tester For Packaging Standards: ISTA, ASTM D999 A Vibration Tester For Packaging designed to protect your goods from the shocks of the road.
The Single Wing Drop Tester is a device used to test the impact resistance of products under the condition of one-sided drop. It simulates the one-sided drop of the product during transportation, handling or daily use, and evaluates its protection performance during the fall. Drop Test Machine Standards ISO2248, JISZ0202-87, GB/T4857.5-92, ISTA
Double Wings Drop Falling Tester simulates the drop/ fall of a finished product to evaluate the damage. This double wing design allows for more precise and varied drop orientations, closely mimicking how packages might fall during actual handling and transportation. Drop Weight Test Machine Standards ISO 2248, JIS Z0202, GB/T4857.5, ISTA
The Zero drop tester is mainly used to evaluate the influence of the package in the actual transportation, the loading and unloading process, and to evaluate the impact strength and the rationality of packaging design.
With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the corrugated box compression testing machine has the following salient features: good parallelism, reliable measure precision and high return speed. Sample types: Corrugated board boxes and Cartons, Plastic Packaging, Wooden box.
The ISTA Incline Impact Tester simulates to test the ability of product against impact damage in the real environment. Incline impact tester can also be used as scientific research institutions, colleges and universities, packaging technology testing center, packaging materials factory and foreign trade, transportation and other departments of the impact of the common test equipment slope. Standards: ASTM D880, ISTA
