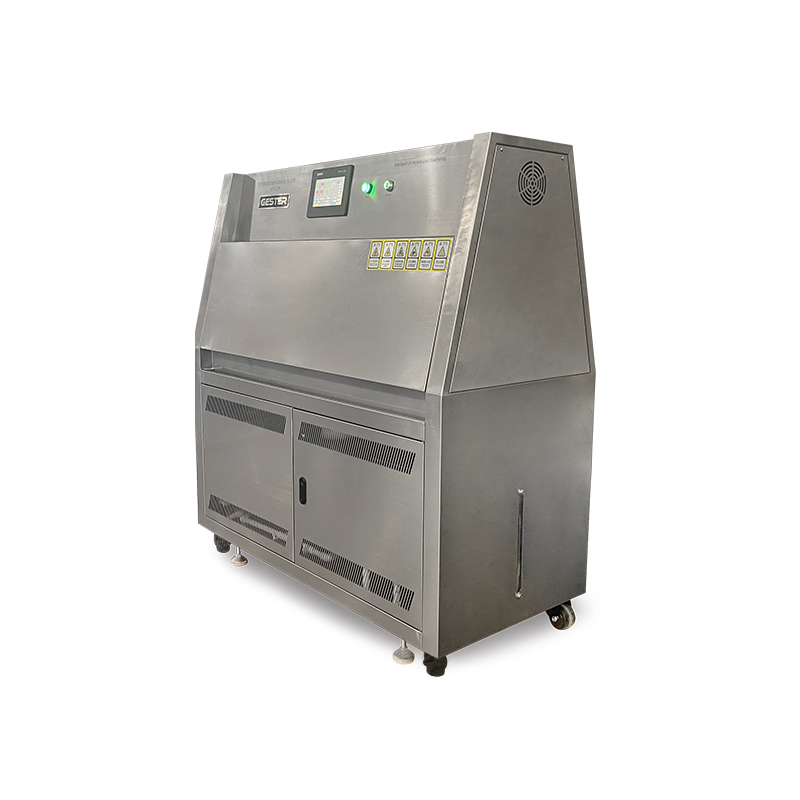

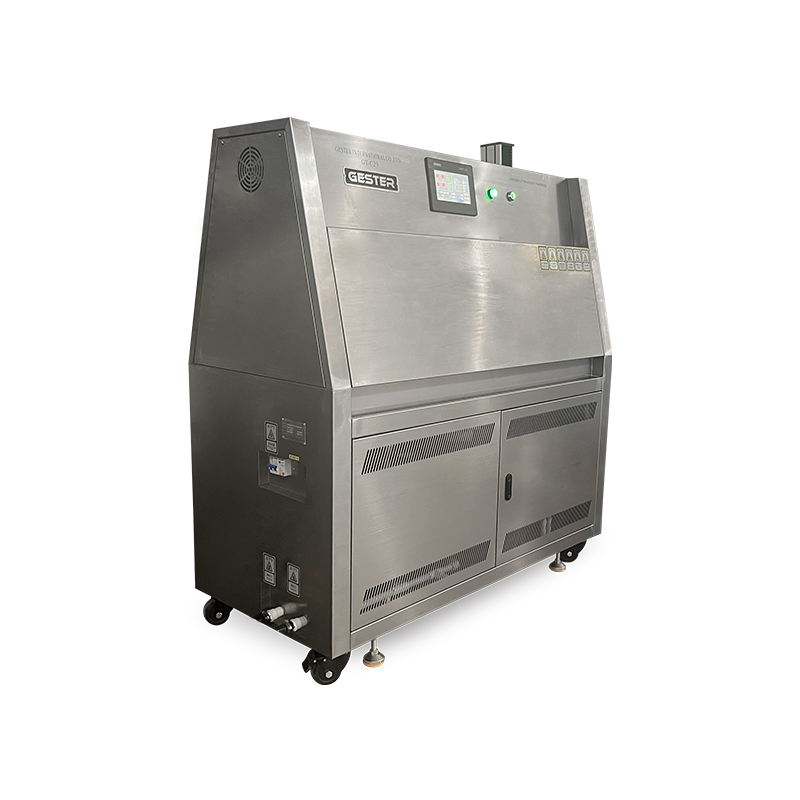

The UV accelerated weathering test chamber reproduces the damage caused by sunlight, rain and dew. It can reproduce the months and years harm in several days or weeks.
uv aging test chamber complies with standards:
• ASTM G154, ASTMD 4329, ASTM D4587, ISO 16474,
• ISO 4892, ISO 11507, ISO4892, ISO11997,
• GB/T16422.3, GB/T16585, GB/T 14522
Item No :
GT-C29Order(MOQ) :
1
GT-C29 Intelligent UV Accelerate Weathering Tester use UVA-340 fluoresvent UV lamp as light sources which can simulate the harm of sunshine, rain and dew. The UV Accelerate Weathering Tester can reproduce the months and years harm in several days or weeks. The harm includes color fading, discoloring, chalkiness, cracking, muddy, bubble, embrittlement, intensity, recession, oxidation etc.
The operating principle of accelerated weathering chamber is combined the ultraviolet rays, rain, high-temperature, condensation and darkness as a circulation and repeat the circulation automatically. We can get the weathering test result of specimen by these circulations.
| Model | GT-C29 |
| Temperature Range | RT+10℃~70℃ |
| Humidity Range | ≥75%RH |
| Temperature Uniformity | ±3℃ |
| Temperature Fluctuation | ±0.5℃ |
| Test Chamber Space | 500 ×1140×400mm |
| Center Distance Inside Lamp | 65~70mm |
| Center Distance Between Specimen and Lamp | 55mm |
| Irradiance | 0.3~1.3W/m2, （Set irradiance on the touch screen） |
| Lamp | L=1200mm /40W, 8 (UVA/UVB, lifetime above1600h) |
| Black Panel Thermometer Testing Range | 30~80℃ |
| Black Panel Thermometer Monitoring | Standard Pt-100 black panel thermometer sensor |
| Specimen Dimension | 75×150mm |
| Specimen Holder Number | 21 |
1. The case is made from numerical control equipment,which is with advanced technology, smooth lines, beautifully designed.
2. Material of the cabinet is thickness 1.2mm, SUS304# advanced stainless steel.
3. Air channel in the cabinet applies single-cycle system and a import axial flow fan improves the air flow ability of light, heating ability, and also significantly improves the temperature uniformity in the test chamber.
4. Lamp: the dedicated ultraviolet, UVA-340 or UVB-313（option), 8 lamps, 4 on each side with a total of 2 sides，40W/1
5. Lamp lifetime: above1600h
6. Water source and consumption: about 8 L tap water or distilled water every day.
7. The uv aging chamber was measured by sensor on blackboard( fixed width 75㎜, height 100㎜, thickness 1.5㎜), this blackboard need to be put the center area of exposure test, temperature gauge measure range is 30～80℃, tolerance is ±1℃. Illumination, condensation need to proceed separately, condensation controlled by heating the water temperature.
8. The specimen holder is made of stainless steel and aluminium alloy.
9. Bottom of unit is fixed by high quality PU running wheel.
10. Drainage system drains water with U type deposition device.
11. The test sample surface is in parallel with UV light plane.
12. Installation of automatic sprinkler inside the spray system, water pressure can be adjusted
13. The power uses the residual current circuit-breaker for control loop, overload and short circuit alarm, over temperature alarm, water shortage protection.
High-Precision Climate Simulation for Reliable Material & Electronic Reliability Testing -This constant temperature humidity chamber features programmable control, wide temperature and humidity ranges, and complies with international standards. Main Features: ✔ Wide Testing Range: Temperature: -60°C to +150°C | Humidity: 20% to 98% RH. ✔ Smart Control: 7-inch programmable color touch screen controller with USB data export. ✔ Premium Components: Equipped with imported French Tecumseh compressor. ✔ International Standards: Fully complies with ISO, ASTM, IEC, JIS, BS.
Benchtop temperature and humidity test chamber delivers precise environmental control through stable temperature and humidity settings for conditioning of samples prior to testing. Its compact footprint allows it to be easily placed on a stand or workbench, perfectly suiting laboratories and testing areas where space is limited — without compromising build quality or testing performance.
Thermal Shock Test Chamber consists of two independent compartments. The thermal shock machine or material being tested is placed in a test basket or tray and then transferred between the hot and cold chambers. The transfer process is rapid, ensuring quick temperature changes that simulate real-world conditions. This enables manufacturers to evaluate the impact of temperature differentials on product integrity, performance, and reliability.
High Low Temperature Test Chamber is devices specifically designed to simulate extreme high- and low-temperature environments, enabling the assessment of the durability, functionality and performance of materials and components following prolonged exposure. Ideal for material durability testing in electronics, aerospace, and industrial applications.
Walk In Environmental Test Chamber, suitable for test instrumentation materials, electricians, electronic products, household appliances, auto parts, chemical coatings,various electronic components and parts of other related products are stored and transported under high temperature and low temperature environment. The adaptability test is used to evaluate its performance indexes.
Salt spray test chamber is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
The UV accelerated weathering test chamber reproduces the damage caused by sunlight, rain and dew. It can reproduce the months and years harm in several days or weeks. uv aging test chamber complies with standards: • ASTM G154, ASTMD 4329, ASTM D4587, ISO 16474, • ISO 4892, ISO 11507, ISO4892, ISO11997, • GB/T16422.3, GB/T16585, GB/T 14522
UV Light Discoloration Tester is also referred to as the Anti-Yellowness Tester, which can simulate the UV (ultraviolet)radiation and heat emitted from the sun, exposing the test pieces tothis artificial environment to accept irradiation within a relatively shorttime. After hours of testing, the operator observes the degree ofdiscoloration and compares the exposed specimen with the unexposedspecimen using the Grey Scale to evaluate the performance of thespecimen's color fastness. Light Discoloration Anti-Yellowness Tester Standards: ASTM-D1148 HG/T 3689
A HAST chamber, or Highly Accelerated Stress Test chamber, simulates the effects of material aging and degradation under controlled conditions of high temperature and high humidity, in a significantly shorter time than normal use.
PCT (Pressure Cooker Test) chamber, also known as the PCT high-pressure accelerated aging test chamber, is a saturated (100% humidity) accelerated humidity test, primarily simulating the high temperature, high temperature and high humidity, and pressure climatic environments that products may encounter during use. PCT Aging Chamber Highlights ✔ Saturated Steam Environment: Provides 100% relative humidity for accurate aging simulation. ✔ Safety Protection Device: Features safety devices and emergency push buttons. ✔ OEM/ODM Customization: Offers non-standard machines and customization based on specific requirements.
This aging oven tester can simulate a high temperature circumstance, to age the specimen quickly. To evaluate the aging resistance of the specimens via the changes between the tensile and elongation ratio. Accelerated aging chamber for Plastics Rubber Standard: ISO 188, ASTM D573
