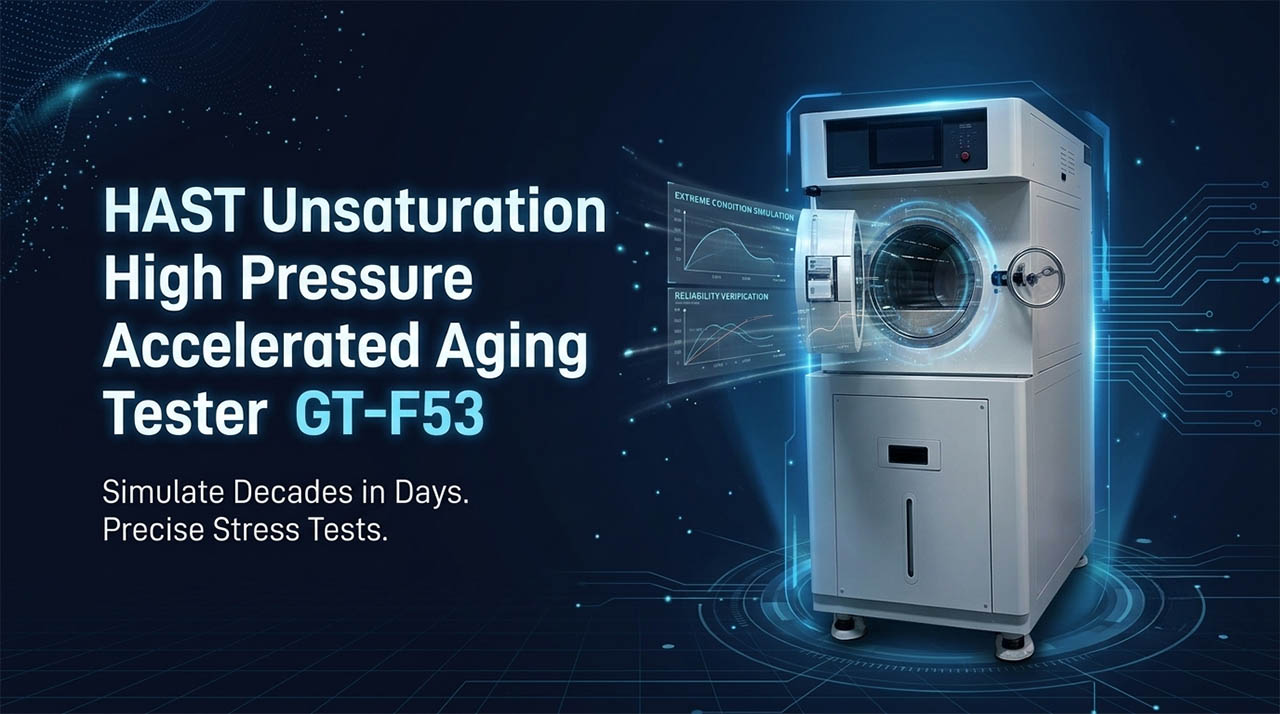

A HAST chamber, or Highly Accelerated Stress Test chamber, simulates the effects of material aging and degradation under controlled conditions of high temperature and high humidity, in a significantly shorter time than normal use.
Item No :
GT-F53Order(MOQ) :
1
Highly Accelerated Stress Test Chamber is an environmental chamber specifically designed to simulate high-stress conditions such as high temperature, high humidity, and high pressure. These chambers help manufacturers predict the long-term reliability and durability of their products within a compressed timeframe.
Testing or storage of samples of flammable, explosive, volatile substances, corrosive substances and strong electromagnetic emission sources are NOT ALLOWED.
IEC60068-2-66; JESD22-A102-C; JESD22-A110-B; JESD22-A118; GB/T 2423.40-1997
| Chamber Size | GT-F53-1 | GT-F53-2 | GT-F53-3 | GT-F53-4 | GT-F53-5 |
| Inside dimension(mm) | Φ300×D 400 | Φ350×D 450 | Φ400×D 500 | Φ450×D 550 | Φ500×D 600 |
| Outside dimension(WxHxD, mm) | 700×1300×1020 | 750×1350×1070 | 800×1400×1120 | 850×1450×1170 | 900×1500×1220 |
| Test environment conditions |
Temperature: RT +25℃, humidity of ≤85%, no samples inside the test chamber. |
| Testing method | GB/T 5170.2-1996 Temperature Test Equipment |
| ge | 100℃ → +132℃. |
| Temperature fluctuation degree | ≤±0.5℃. |
| Temperature uniformity | ≤±2.0℃. |
| Humidity range | 70% ～ 100 %R.H . |
| Humidity fluctuation degree | ≤±2.5 %R.H. |
| Humidity uniformity | ≤±3.0% R.H. |
| Pressure range | 0.2 - 3.0 kg/cm² (0.05 - 0.296 MPa), (the pressure inside the box) |
| Heating time | room temperature → + 132℃, ≈ 50 minutes. |
| Pressure Rising Time |
Atmospheric pressure → + 3 kg/cm², ≈55 minutes. External air source pressurization: approximately 5 minutes |
| Load condition | Module product |
High-Precision Climate Simulation for Reliable Material & Electronic Reliability Testing -This constant temperature humidity chamber features programmable control, wide temperature and humidity ranges, and complies with international standards. Main Features: ✔ Wide Testing Range: Temperature: -60°C to +150°C | Humidity: 20% to 98% RH. ✔ Smart Control: 7-inch programmable color touch screen controller with USB data export. ✔ Premium Components: Equipped with imported French Tecumseh compressor. ✔ International Standards: Fully complies with ISO, ASTM, IEC, JIS, BS.
Benchtop temperature and humidity test chamber delivers precise environmental control through stable temperature and humidity settings for conditioning of samples prior to testing. Its compact footprint allows it to be easily placed on a stand or workbench, perfectly suiting laboratories and testing areas where space is limited — without compromising build quality or testing performance.
Thermal Shock Test Chamber consists of two independent compartments. The thermal shock machine or material being tested is placed in a test basket or tray and then transferred between the hot and cold chambers. The transfer process is rapid, ensuring quick temperature changes that simulate real-world conditions. This enables manufacturers to evaluate the impact of temperature differentials on product integrity, performance, and reliability.
High Low Temperature Test Chamber is devices specifically designed to simulate extreme high- and low-temperature environments, enabling the assessment of the durability, functionality and performance of materials and components following prolonged exposure. Ideal for material durability testing in electronics, aerospace, and industrial applications.
Walk In Environmental Test Chamber, suitable for test instrumentation materials, electricians, electronic products, household appliances, auto parts, chemical coatings,various electronic components and parts of other related products are stored and transported under high temperature and low temperature environment. The adaptability test is used to evaluate its performance indexes.
Salt spray test chamber is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
The UV accelerated weathering test chamber reproduces the damage caused by sunlight, rain and dew. It can reproduce the months and years harm in several days or weeks. uv aging test chamber complies with standards: • ASTM G154, ASTMD 4329, ASTM D4587, ISO 16474, • ISO 4892, ISO 11507, ISO4892, ISO11997, • GB/T16422.3, GB/T16585, GB/T 14522
UV Light Discoloration Tester is also referred to as the Anti-Yellowness Tester, which can simulate the UV (ultraviolet)radiation and heat emitted from the sun, exposing the test pieces tothis artificial environment to accept irradiation within a relatively shorttime. After hours of testing, the operator observes the degree ofdiscoloration and compares the exposed specimen with the unexposedspecimen using the Grey Scale to evaluate the performance of thespecimen's color fastness. Light Discoloration Anti-Yellowness Tester Standards: ASTM-D1148 HG/T 3689
A HAST chamber, or Highly Accelerated Stress Test chamber, simulates the effects of material aging and degradation under controlled conditions of high temperature and high humidity, in a significantly shorter time than normal use.
PCT (Pressure Cooker Test) chamber, also known as the PCT high-pressure accelerated aging test chamber, is a saturated (100% humidity) accelerated humidity test, primarily simulating the high temperature, high temperature and high humidity, and pressure climatic environments that products may encounter during use. PCT Aging Chamber Highlights ✔ Saturated Steam Environment: Provides 100% relative humidity for accurate aging simulation. ✔ Safety Protection Device: Features safety devices and emergency push buttons. ✔ OEM/ODM Customization: Offers non-standard machines and customization based on specific requirements.
This aging oven tester can simulate a high temperature circumstance, to age the specimen quickly. To evaluate the aging resistance of the specimens via the changes between the tensile and elongation ratio. Accelerated aging chamber for Plastics Rubber Standard: ISO 188, ASTM D573
