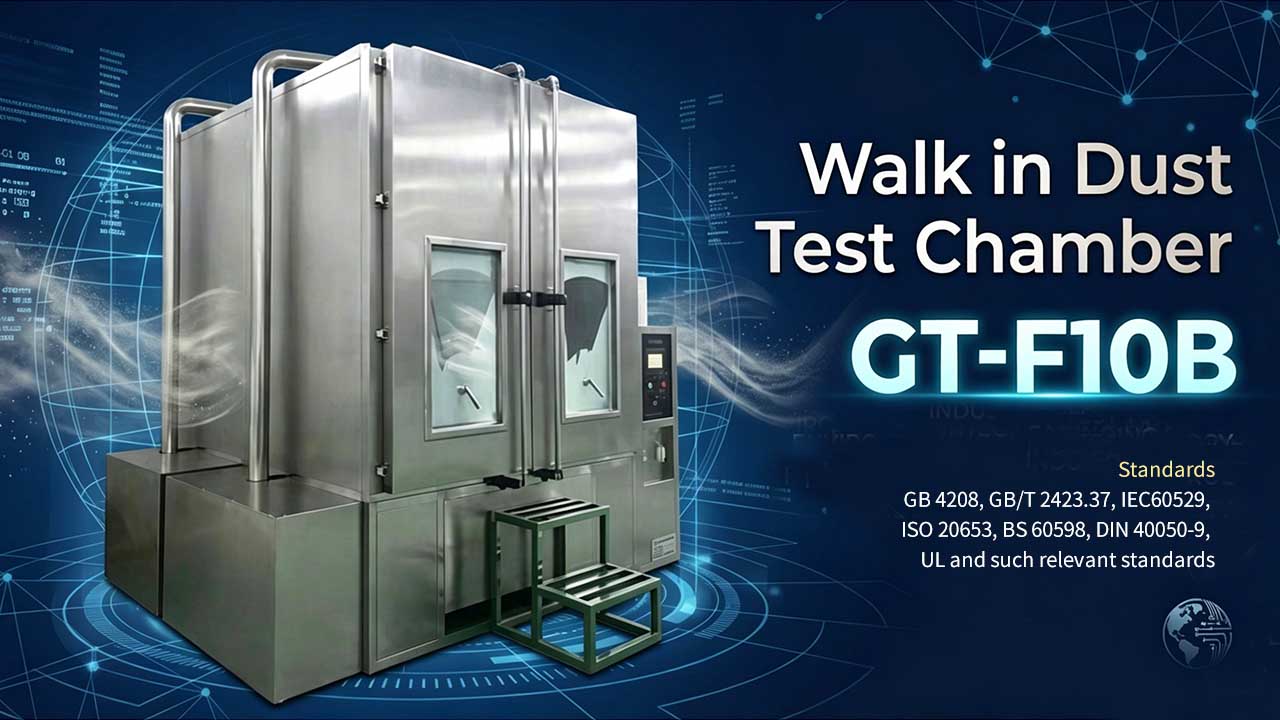

Walk in Dust Test Chamber provide a simulated sand blowing and dusting environment. It can continuous operation for a long time without failure.
Sand and dust chamber Standards
GB 4208, GB/T 2423.37, IEC60529, ISO 20653, BS 60598, DIN 40050-9, UL and such relevant standards
Item No :
GT-F10BOrder(MOQ) :
1
The Walk In Test Chamber is suitable for electric and electronic products, automobile and motorcycle parts, seals in sand and dust environment to prevent sand and dust into the seal and the shell test. To test the use of storage, transport performance of electrical and electronic products, automobiles, motorcycles and spare parts, seals in sand and dust environment.
| Model | GT-F10B |
| Workroom dimension (mm) | 2000x2000x3000 (DxWxH) |
| External dimension (mm) | 2500x2500x3500 (DxWxH) |
| Chamber door | Double-door 2000x2000 (with observation window above), must has a track to deliver samples |
| Dimension of single door | 1000x2000mm |
| Temperature Range | RT+10 ℃~ 60 ℃ (Heat baking system) |
| Humidity Range | ≤ 85%RH |
| Air velocity | No more than 2m/s |
| Dust concentration | 2 ~ 4kg/m³ |
| Dust specifications | Can through the sieve is 75um, wire diameter 50um square dry talcum powder |
| Vibration time | 1S-999H Adjustable |
| Blow dust time | 1S-999H Adjustable |
| Dust dehumidification | Electric heating dehumidification |
• The Walk In Environmental Chamber uses a high-quality stainless steel interior shell, the overall appearance is elegant. The middle of the box door is equipped with a large area of observation windows plus manual wiper device, you can easily and clearly see the test situation during the test process.
• The main controller of the sand and dust chamber adopts intelligent digital temperature controller, user-friendly design of the operation method, easy to learn and easy to use, and instrumentation operations of different functional grades are compatible with each other. The input uses digital correction system, the built-in part uses commonly used thermocouple and RTD nonlinear calibration table, accurate and stable measurement. With bit adjustment and AI artificial intelligence adjustment function, 0.2 level accuracy, a variety of alarm mode. The device has a timer function. Equipment heating uses stainless steel fin heating tube.
• Design a tapered funnel, the bottom has the dust collection port and the vacuum port, the suction port installs a high-pressure turbine circulating fan, the dust will be sent to the top of the inner box, and then blow down the dust from the top vertically, when the dust falls on the side wall of the hopper, and then the dust is recovered to the suction port by the vibration device, so that the cycle begins and starts again.
• The whole dust chamber blow cycle, vibration cycle can be adjusted, and with the total test timer.
• Fan over current alarm
• Power phase loss
• Phase sequence protection
• Unexpected situation automatically shut down and cut off the power
