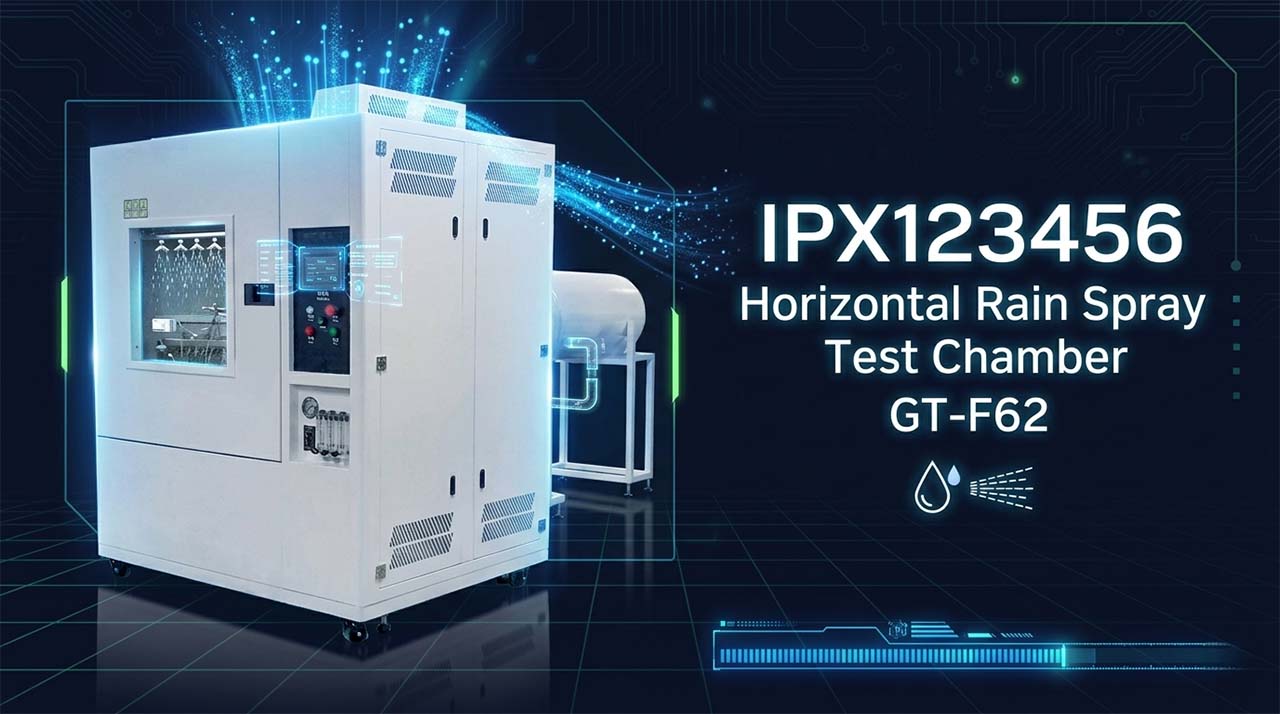

IPX123456 Rain Spray Test Chamber is mainly used to test the performance of products during storage, transportation and use under rainy climatic conditions. It is applicable for testing the physical and other related performances of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts under simulated rainy conditions.
After the test, the Rain Test Equipment performance is verified to judge whether it meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.
GB2423.38-90, GB4706.32-2004, IEC60529, GB4208-2008, etc.
|
Model |
GT-F62-500 |
GT-F62-1000 |
GT-F62-1500 |
|
|
Capacity |
500L |
1000L |
1500L |
|
|
Inner chamber dimension (mm, W×D×H) |
800×800×800mm |
1000×1000×1000 |
1500×1500×1500 |
|
|
Outer chamber dimension (mm, W×D×H) |
1380×3600×1750 |
1480×3800×1800 |
18900×4300×2300 |
|
|
Dripping area dimension (mm, W×D×H) |
600×600×60 |
800×800×60 |
800×800×80 |
|
|
Distance between water dripping tank and sample chamber |
200mm (inside) |
|||
|
Dripping hole diameter |
φ0.4mm |
|||
|
Spacing of water spray holes |
20mm |
|||
|
Rainfall |
1±0.5mm/min, 3±0.5mm/min |
|||
|
Turntable |
IPX1: horizontal; |
|||
|
|
IPX2: tiltable at 15° |
|||
|
Air source |
Prepared by the buyer, air source with pressure above 5kg |
|||
|
IP34 |
||||
|
Swing pipe radius(mm) |
400 |
600 |
||
|
Distance between spray head and sample |
200mm (inside) |
|||
|
Spacing of water spray holes |
50mm |
|||
|
Swing angle range of spray pipe |
120°, 320° (configurable) |
|||
|
Nozzle included angle |
IPX3: 120° |
|||
|
|
IPX4: 180° |
|||
|
Swing pipe speed |
30°/s |
|||
|
Swinging speed |
IP3: 15 times/min; |
|||
|
|
IP4: 5 times/min times/min |
|||
|
Water spray hole diameter |
φ0.4mm |
|||
|
Flow rate per water spray hole |
0.07(±5%) L/min |
|||
|
Water spray pressure |
80-150kPa |
|||
|
Spray system |
IPX3: 16 nozzles; |
|||
|
|
IPX4: 25 nozzles |
|||
|
Water flow rate |
IPX3: 1.1 L/min, |
|||
|
|
IPX4: 1.8 L/min |
|||
|
IP56 |
||||
|
Number of spray heads |
IPX5 spray head, 1pc; IPX6 spray head, 1pc (2 in total) |
|||
|
Water-receiving surface |
Side of the product |
|||
|
Distance between spray head and sample |
2500～3000mm(or within that range) |
|||
|
Inner diameter of spray hole |
IPX5: φ6.3mm, |
|||
|
|
IPX6: φ12.5mm |
|||
|
Water spray flow rate |
IPX5: 12.5±0.625 L/min, |
|||
|
|
IPX6: 100±5 L/min |
|||
|
Pipe diameter |
1 piece of 1/2 inch high-pressure hose ; 1 piece of 1 inch high-pressure hose respectively |
|||
|
Water spray pressure |
30～200kPa (adjusted according to flow rate) |
|||
|
Continuous water spray time |
3, 10, 30, 9999min (adjustable) |
|||
|
Running time control |
1～9999min (adjustable) |
|||
|
Water circulation system |
Ensures recycling of water source |
|||
|
Water spray pressure gauge |
Displays water spray pressure |
|||
|
Flow and pressure control |
Mechanical flow meter |
|||
|
Control system |
Self-developed touch screen control system (Teelong) |
|||
|
Spray system |
Composed of water pump, water pressure gauge and fixed spray pipe support |
|||
|
Spray pipe material |
Stainless steel pipe |
|||
|
Common System |
||||
|
Outer chamber material: |
304 stainless steel |
|||
|
Frame material: |
A3 iron plate with plastic spraying (white) A3 iron plate with plastic spraying (white) |
|||
|
Turntable rotation speed: |
1～7r/min (adjustable) 1～7r/min (adjustable) |
|||
|
Turntable load capacity: |
20kg |
|||
|
Turntable height adjustability(mm) |
200 |
|||
|
Turntable diameter(mm) |
400 |
600 |
||
|
A water tank is installed at the bottom. The stainless steel water pump inside the right control box pumps and pressurizes water, which is then delivered to the spray heads of the side spray pipe device. The nozzles spray water horizontally onto the samples on the turntable, and the water falls back into the water tank to form a water circulation system. Control components such as flow meter, pressure gauge and solenoid valve are designed at the water pump outlet. A waterproof turntable is installed in the inner chamber, and its speed is controlled on the panel |
||||
· Ambient temperature: RT10～35℃ (average temperature within 24h ≤28℃)
· Ambient humidity: ≤85%RH
· Power supply: AC380V 50HZ three-phase five-wire system + protective ground wire; the grounding resistance of the protective ground wire is less than 4Ω. The user is required to configure an air or power switch with corresponding capacity for the equipment at the installation site, and the switch must be exclusively used for this equipment.
· Power: Approx. 5KW
· Protection system: Leakage protection, phase sequence protection, alarm prompt
