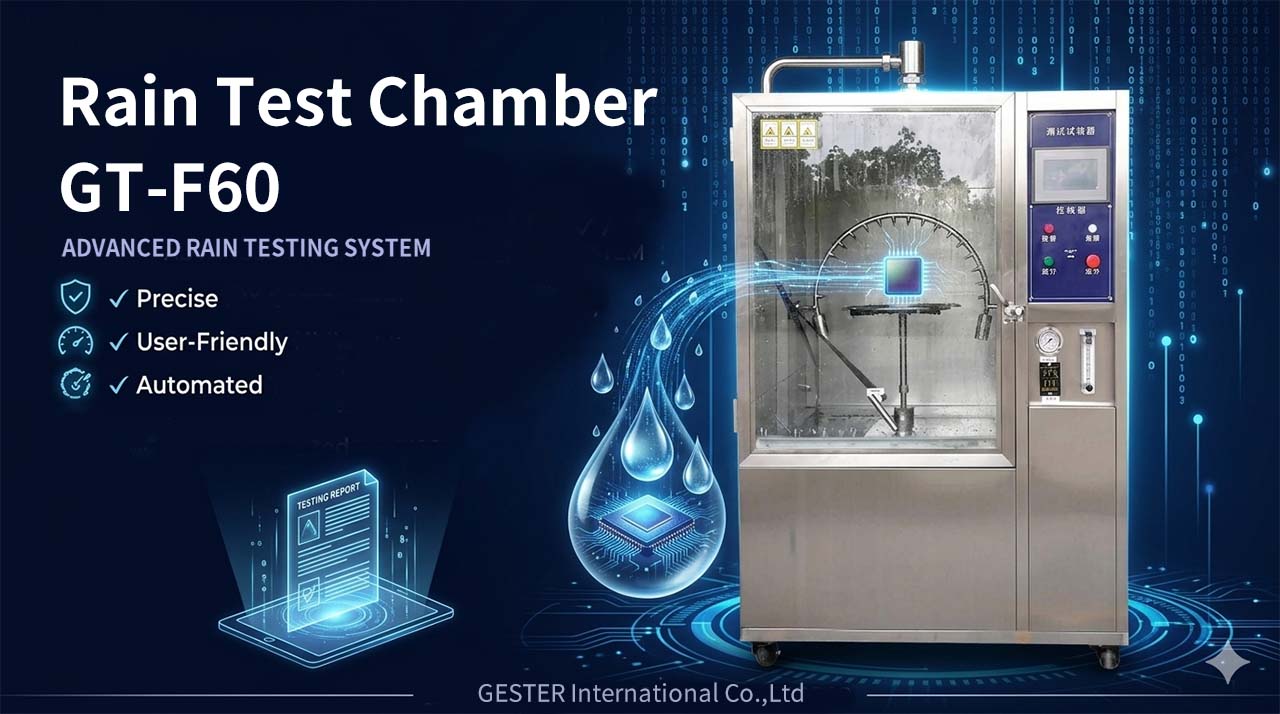

The rain test chamber is used to test the rainproof and waterproof performance of products. GESTER Rain Test Machine can precisely control test conditions, ensuring compliance with industry standards and improving product reliability.
Item No :
GT-F60Order(MOQ) :
1
GESTER Rain Test Equipment can simulate the water leakage in various environment. It is applicable to test the function of electronic products and automobile parts subjected to the droplets, indirect wind and rain or spray.
GB 4208, GB10485, GB4942, GB/T 2423.38, GB/T 2424.23, JIS D0203
|
Model |
GT-F60 |
|
Controller |
PLC Touch Screen |
|
Testing time |
1-999,999min (Can be set.) |
|
Inner dimension |
1000mm×1000mm×1000mm (D×W×H) |
|
Inner chamber material |
SUS #304 stainless steel |
|
Speed of test table |
1～7rpm (Adjustable) |
|
Turntable diameter |
600mm |
|
Swing pipe radius |
400mm |
|
Max. Loading weight |
20kgs |
|
Spray hole spacing |
50mm |
|
Swing angle of spray pipe |
120°320° (Can be set.) |
|
Nozzle angle |
120°(IPX3) 180°(IPX4) |
|
Swing speed of spray pipe |
30°/s , IPX3: 15 times/min, IPX4: 5 times/min |
|
Spray hole diameter |
Φ0.4mm |
|
Flow rate of each spray hole |
0.07 L/min +5% |
|
Spray pressure |
80-150kpa |
|
The distance between sample and the test device |
200mm |
|
Water supply and consumption |
Purified water or distilled water, 8 L/day |
|
Spray system |
IPX 3: 16 nozzles, IPX 4: 25 nozzles |
|
Power supply |
1 phase 220V 50Hz, about 6KW |
|
Machine dimension |
1400×1060×1710mm (D×W×H) |
The raining test chamber plays a critical role in product testing for the following reasons:
• Ensures durability and reliability
By simulating various rainfall conditions, these rain test chambers help identify potential weaknesses in products, ensuring they can withstand real-world weather conditions.
• Complies with industry standards
Adhering to standards is crucial for manufacturers. These standards ensure that products meet specific quality and safety requirements, which is essential for gaining market acceptance and earning consumer trust.
• Prevents product failures
By identifying issues early in the development process, rain test chambers help prevent costly product recalls and failures.
IP Rain Spray Test Chambers are widely used across multiple industries. Their versatility makes them an essential testing solution for companies that prioritize quality assurance. Rain test chambers serve many sectors, such as:
High-Precision Climate Simulation for Reliable Material & Electronic Reliability Testing -This constant temperature humidity chamber features programmable control, wide temperature and humidity ranges, and complies with international standards. Main Features: ✔ Wide Testing Range: Temperature: -60°C to +150°C | Humidity: 20% to 98% RH. ✔ Smart Control: 7-inch programmable color touch screen controller with USB data export. ✔ Premium Components: Equipped with imported French Tecumseh compressor. ✔ International Standards: Fully complies with ISO, ASTM, IEC, JIS, BS.
Benchtop temperature and humidity test chamber delivers precise environmental control through stable temperature and humidity settings for conditioning of samples prior to testing. Its compact footprint allows it to be easily placed on a stand or workbench, perfectly suiting laboratories and testing areas where space is limited — without compromising build quality or testing performance.
Thermal Shock Test Chamber consists of two independent compartments. The thermal shock machine or material being tested is placed in a test basket or tray and then transferred between the hot and cold chambers. The transfer process is rapid, ensuring quick temperature changes that simulate real-world conditions. This enables manufacturers to evaluate the impact of temperature differentials on product integrity, performance, and reliability.
High Low Temperature Test Chamber is devices specifically designed to simulate extreme high- and low-temperature environments, enabling the assessment of the durability, functionality and performance of materials and components following prolonged exposure. Ideal for material durability testing in electronics, aerospace, and industrial applications.
Walk In Environmental Test Chamber, suitable for test instrumentation materials, electricians, electronic products, household appliances, auto parts, chemical coatings,various electronic components and parts of other related products are stored and transported under high temperature and low temperature environment. The adaptability test is used to evaluate its performance indexes.
Walk in Dust Test Chamber provide a simulated sand blowing and dusting environment. It can continuous operation for a long time without failure. Sand and dust chamber Standards GB 4208, GB/T 2423.37, IEC60529, ISO 20653, BS 60598, DIN 40050-9, UL and such relevant standards
Salt spray test chamber is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
The rain test chamber is used to test the rainproof and waterproof performance of products. GESTER Rain Test Machine can precisely control test conditions, ensuring compliance with industry standards and improving product reliability.
IP Rain Spray Test Chamber adopts a scientific design that enables the equipment to realistically simulate various environments such as dripping, raining, splashing, and spraying. While meeting national standards, the Rain Test Equipment offers stable performance in all aspects and is highly practical and easy to control.
GESTER IPX Rain Test Chamber offers high precision and reliability, ensuring compliance with international standards and providing an efficient solution for testing under simulated rain spray conditions.
This IPX56 Waterproof Test Chamber is mainly used to evaluate the performance of products under simulated rain conditions during storage, transportation, and use. It is widely applied to electrical and electronic products, lighting equipment, electrical cabinets, electrical components, automobiles, motorcycles, and their parts.
GESTER sand and dust test chamber is a device specifically designed to evaluate the effects of sand and dust particles on various products. It provides a controlled environment that allows products to undergo rigorous testing to determine their resistance to particle ingress and to assess their overall performance in dusty, dusty conditions.
