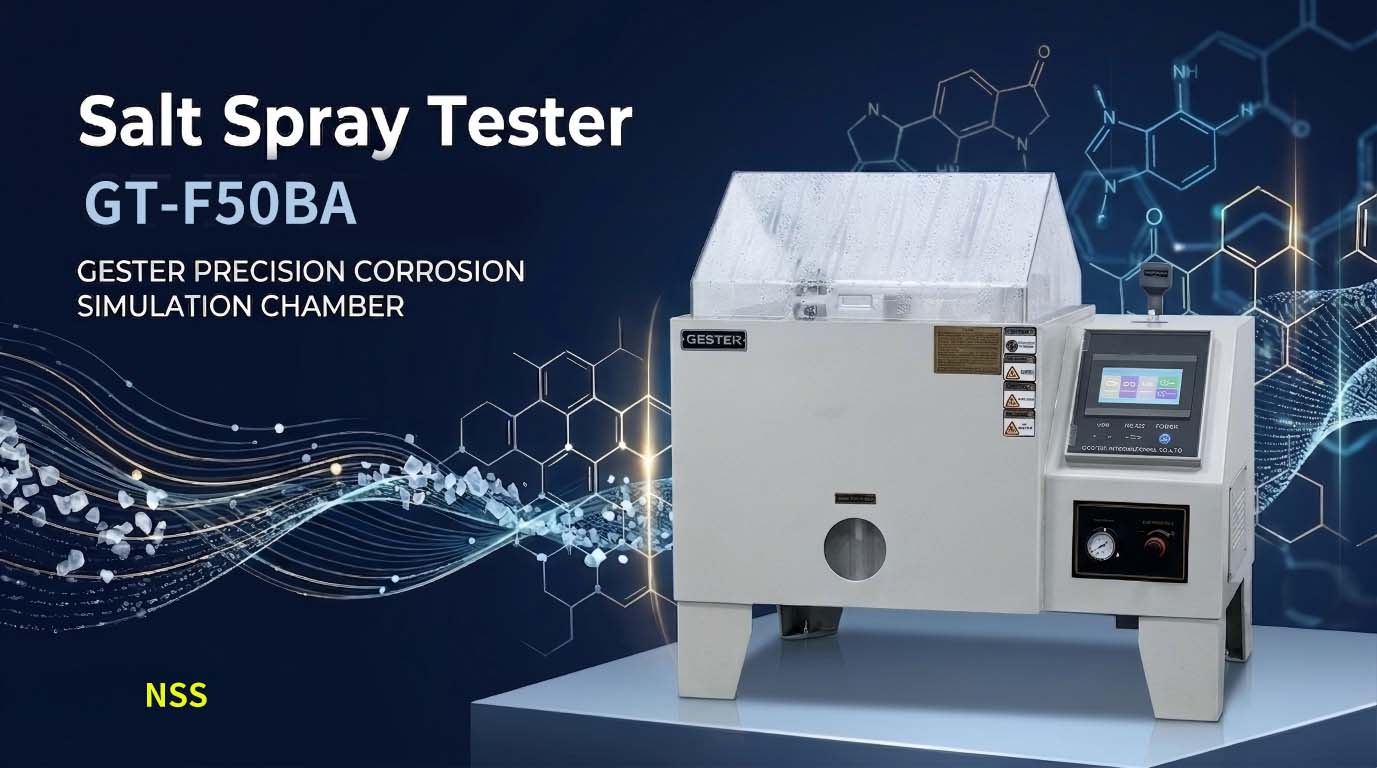

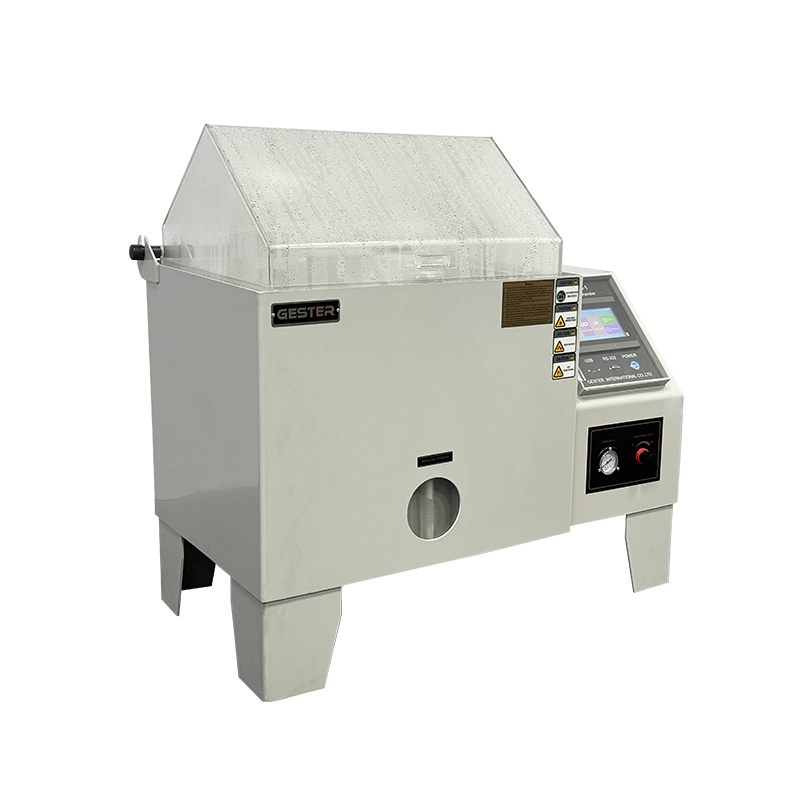

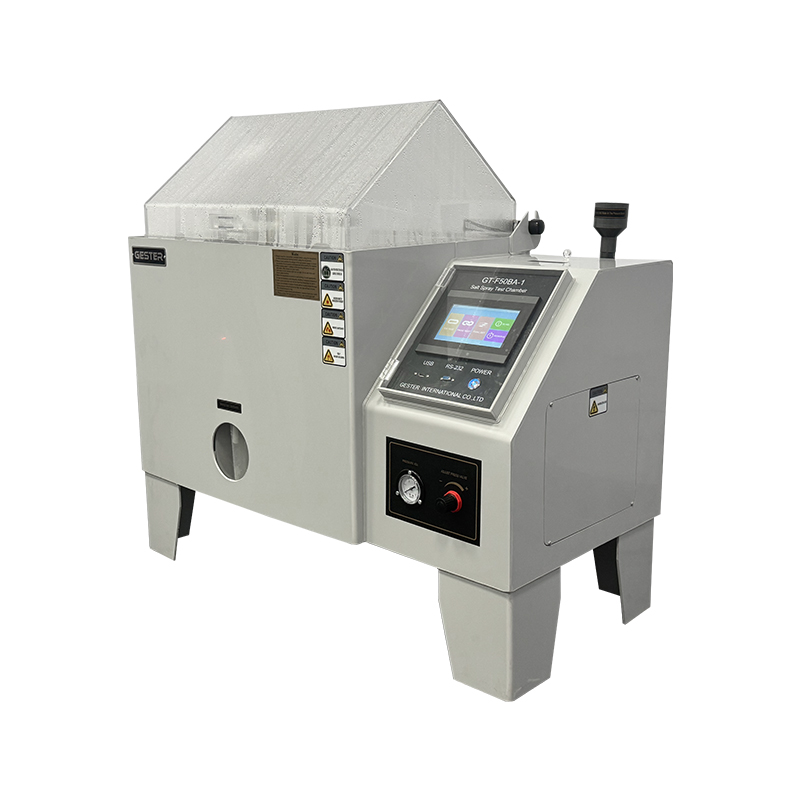

Salt spray cabinet is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring
Salt spray test machine that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
Item No :
GT-F50BAOrder(MOQ) :
1
Corrosion is a natural process that affects the service life of products. It is triggered by factors such as humidity, temperature fluctuations, acidity, and salinity – conditions present in a wide range of environments.
Salt spray corrosion test chamber: It aims at determining the product corrosion resistance after various kinds of materials surface suffering electroplating, anodizing, painting, rust-proof oil corrosion resistance treatment. Corrosion test chamber is suitable for neutral salt spray test (NSS).
CNS3627, 3885, 7669, 8886,
JIS D-0201, H-8502, K-5400, Z-2371,
ISO 3768, EN 248
ASTM B-117, B-268,
GB-T2423
DIN 50021-SS
| Model | GT-F50BA-1 | GT-F50BA-2 | GT-F50BA-3 | GT-F50BA-4 | GT-F50BA-5 |
| Inside Chamber Dimension (WxDxH cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x120x60 |
| Outside Chamber Dimension (WxDxH cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x140x140 | 270x150x150 |
| Test Chamber Volume | 108L | 270L | 600L | 800L | 1440L |
| Brine Tank | 15L | 25L | 40L | 40L | 40L |
| Control Method | Touch Screen | ||
| Plastic Plate Thickness | 5mm | ||
| Temperature of Test Chamber |
Brine test method(NSS ACSS)35℃±1℃ |
||
| Temperature of Pressure Barrel |
Brine test method(NSS ACSS)47℃±1℃ |
||
| Brine Temperature | 35℃~50℃ | ||
| Brine Concentration | 5% sodium chloride solution concentration | ||
| Compressed Air Pressure | 1.00±0.01kgf/cm2 | ||
| Spray Volume | 1.0~2.0ml/80cm2/h(gather at least 16 hours, take its average) | ||
| Relative Temperature of Test Chamber | Above 85% | ||
| PH-value | Neutral: 6.5~7.2 | ||
| Spray Method | continuous spray or intermittent spray | ||
| Temperature Range | Range Laboratory temp. | 35℃- 50℃(can be arbitrarily set) | |
| Pressure barrel temp. | 47℃- 63℃(can be arbitrarily set) | ||
| Temperature Rising Speed | Laboratory | Room temperature →35℃, about 35 minutes | |
| Pressure barrel | Room temperature →47℃, about 15 minutes | ||
| Temp.accuracy | ±1℃ | ||
Salt fog chambers are indispensable tools in product development and quality assurance across a diverse range of industries. These chambers enable engineers and researchers to simulate harsh environmental conditions – such as salt spray, humidity, and acidic atmospheres – to assess product durability, longevity, and corrosion resistance.
High-Precision Climate Simulation for Reliable Material & Electronic Reliability Testing -This constant temperature humidity chamber features programmable control, wide temperature and humidity ranges, and complies with international standards. Main Features: ✔ Wide Testing Range: Temperature: -60°C to +150°C | Humidity: 20% to 98% RH. ✔ Smart Control: 7-inch programmable color touch screen controller with USB data export. ✔ Premium Components: Equipped with imported French Tecumseh compressor. ✔ International Standards: Fully complies with ISO, ASTM, IEC, JIS, BS.
Benchtop temperature and humidity test chamber delivers precise environmental control through stable temperature and humidity settings for conditioning of samples prior to testing. Its compact footprint allows it to be easily placed on a stand or workbench, perfectly suiting laboratories and testing areas where space is limited — without compromising build quality or testing performance.
Thermal Shock Test Chamber consists of two independent compartments. The thermal shock machine or material being tested is placed in a test basket or tray and then transferred between the hot and cold chambers. The transfer process is rapid, ensuring quick temperature changes that simulate real-world conditions. This enables manufacturers to evaluate the impact of temperature differentials on product integrity, performance, and reliability.
High Low Temperature Test Chamber is devices specifically designed to simulate extreme high- and low-temperature environments, enabling the assessment of the durability, functionality and performance of materials and components following prolonged exposure. Ideal for material durability testing in electronics, aerospace, and industrial applications.
Walk In Environmental Test Chamber, suitable for test instrumentation materials, electricians, electronic products, household appliances, auto parts, chemical coatings,various electronic components and parts of other related products are stored and transported under high temperature and low temperature environment. The adaptability test is used to evaluate its performance indexes.
Salt spray test chamber is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
Salt spray cabinet is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring Salt spray test machine that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
The purpose of cyclic corrosion testing is to reproduce the types of corrosion in outdoor corrosive environments. The test exposes the sample to a series of cyclic environments with different conditions. Simple exposure cycles, such as the Prohesion test, expose the sample to a cycle consisting of salt spray and dry conditions. More complex automotive testing methods require cycles of humidity and rest in addition to salt spray and drying cycles. Initially, these test cycles were performed manually, with laboratory operators moving samples from salt spray chambers to humidity chambers, and then to drying or resting devices. Our microprocessor-controlled test chamber can automatically complete these test steps, reducing the uncertainty of the test.
