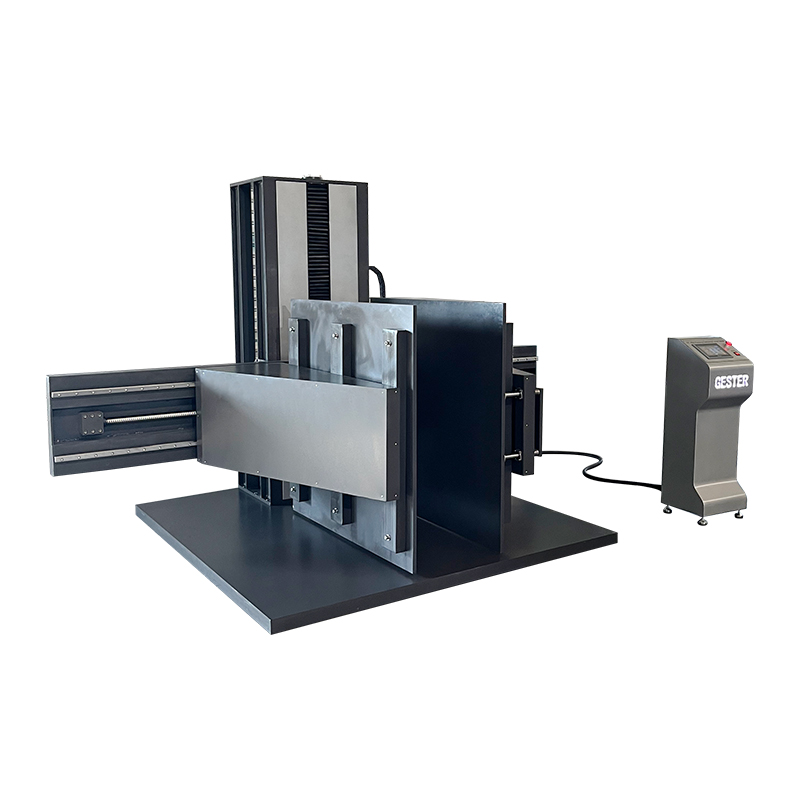

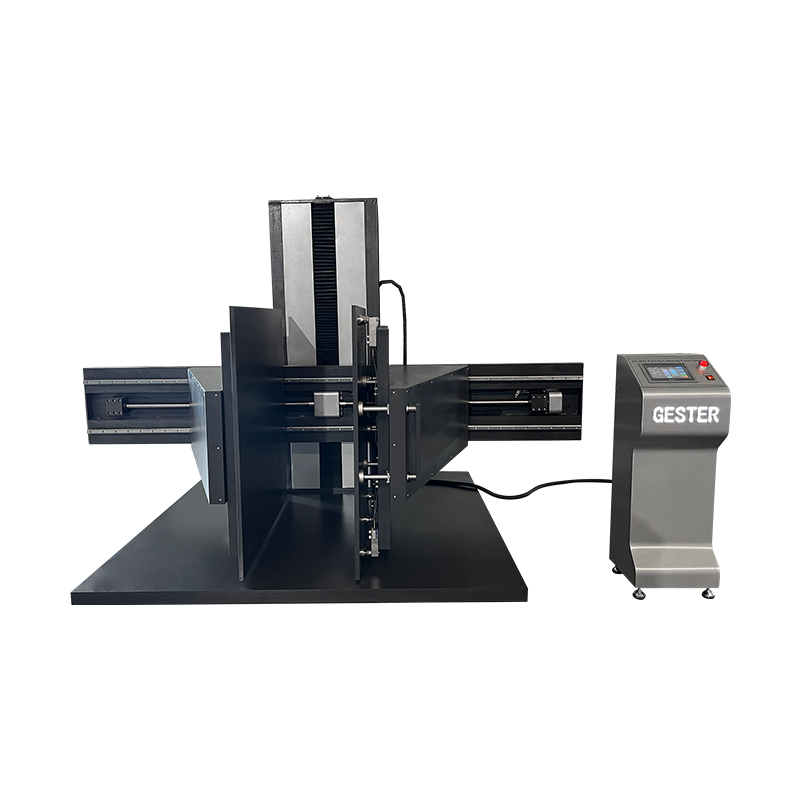

Packaging Clamping Force Tester simulates handling conditions to ensure packages withstand pressure, clamping, and transport stresses.

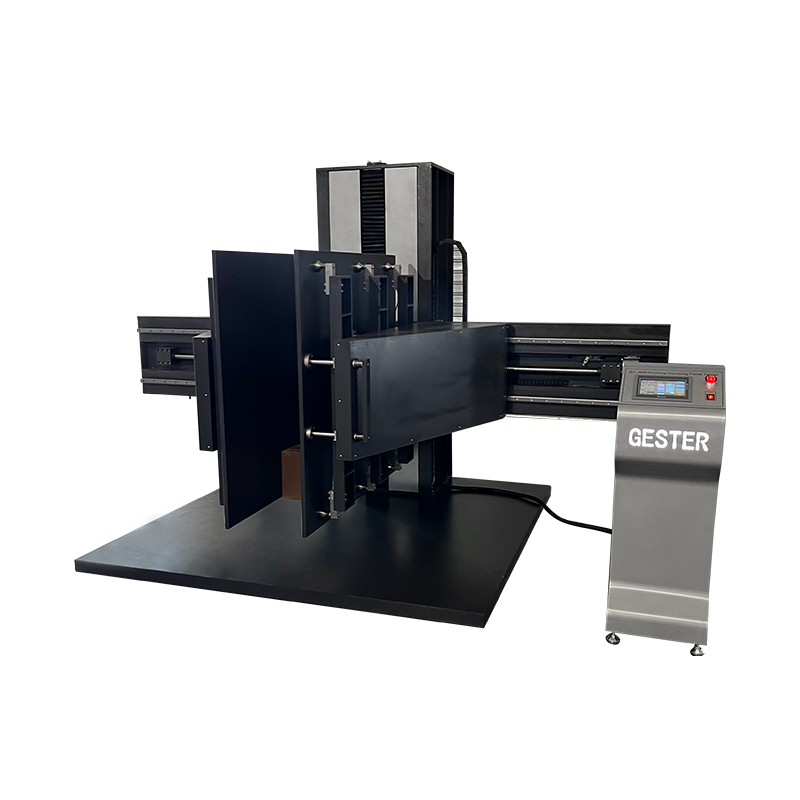

Our ISTA Clamp Force Tester enhance packaging quality, minimize transit damage, and comply with industry standards.
✅Protect Packaging ✅Improve Quality ✅Reduce Damage ✅Increase Confidence
Item No :
GT-N55Order(MOQ) :
1
The Package Clamping Tester is used for simulation when the clamp vehicle loading and unloading the package, the clamping force between two plywood impact on the package and goods, test and evaluate package’s clamp strength.
• EN ISO 16047-2005 fasteners / clamping torque force test
• QMZ - J81.003-2012 product packaging evaluation method
• QMZ - J81.006-2013 experimental evaluation method and standard
|
Model |
GT-N55 |
|
Max. Capacity |
400~3000lb |
|
Max. Specimen weight |
600kg(can be customized) |
|
Power Controller |
Window 7, RS-232port |
|
Sensor |
6 units |
|
Motor |
Servo motor, DC variable speed drive system, high-precision mechanical ball screw rod |
|
Force Unit |
Kgf/N/Lbf |
|
Sensor Accuracy |
1/250,000 |
|
Load precision |
In±0.25% |
|
Smoothness |
within±2.5mm |
|
Sensor resolution |
1/250,000 |
|
Clamping Plate Size |
Height 48 inch, depth 48 inch |
|
Clamp Plate Adjustable height |
0-1,000mm |
|
Clamp Plate Adjustable width |
200-2000mm |
|
Base plate size |
2200×2100mm |
|
Test speed |
0.25~2.5mm/sec (according to ISTA 6 -SAMS CLUB) |
|
Software |
Independent research and development system |
|
Data display |
Load, displacement, speed, loading rate, elapsed time |
|
Function |
The clamp can be up and down |
|
Clamping plate requirements |
Make the two clamping boards flat and non-deform under work condition (2000 pounds) and make clamping board’ parallel and clamping board and land vertical. Clamping board is thicker than 25mm. |
|
Safety features |
1) E-Stop; 2)Over-load protection; 3)Upper and lower limit switches; 4) Load sensor with automatic retreat |
|
Improve displacement and velocity |
The lifting speed and displacement computer adjustable 0-1200MM, Improve accuracy of displacement shall prevail the ruler |
|
The maximum allowable specimen height |
2.2m,adding displacement height 1.2m,equipment overall height about 2.8m |
|
Packing dimension |
11.2CBM |
|
Gross weight |
1000 kg |
