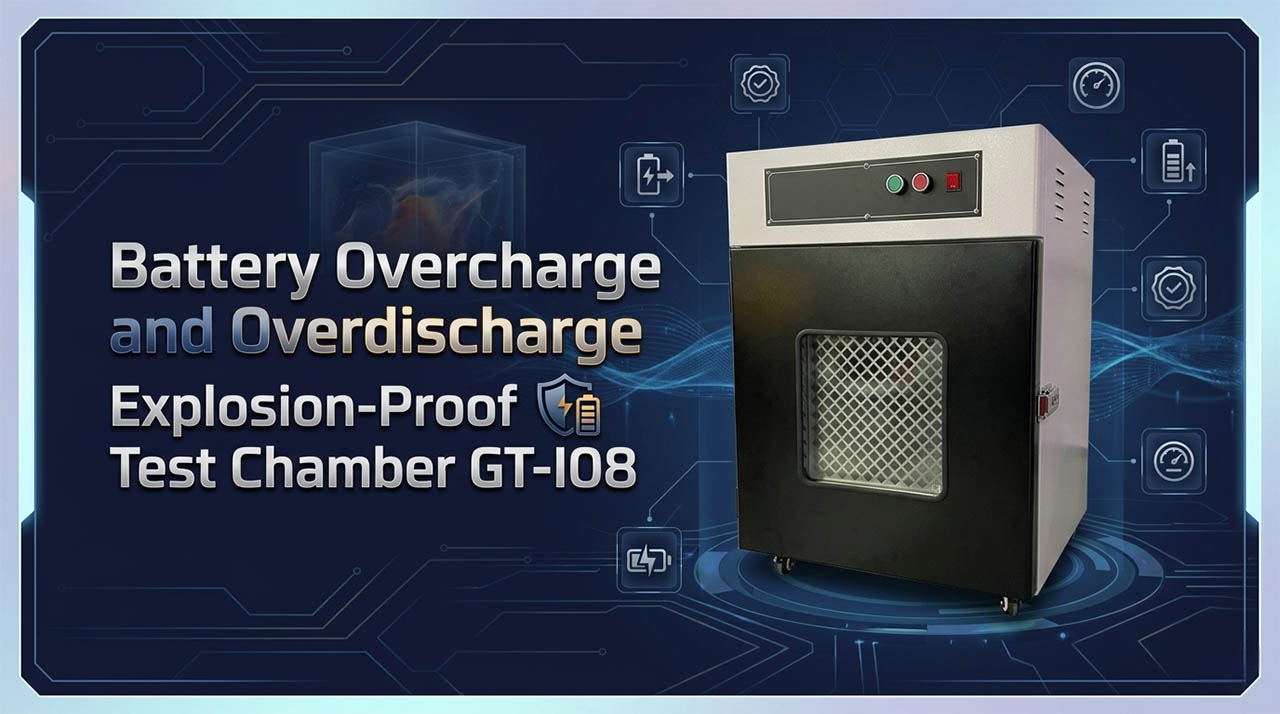

Battery Overcharge and Overdischarge Explosion-Proof Test Chamber GT-I08

Battery Overcharge and Overdischarge Explosion-Proof Test Chamber GT-I08

The Battery Overcharge and Overdischarge Explosion-Proof Test Chamber GT-I08 is a specialized safety testing enclosure designed for evaluating battery performance under extreme charging and discharging conditions.



Main Features:

Comprehensive Safety Protection System

Precision Temperature Management

Durable Explosion-Proof Structural Design

Real-Time Safety Monitoring

Wide Compatibility & Easy Operation



  • Item No :

    GT-I08
  • Order(MOQ) :

    1
  • Battery Overcharge and Overdischarge Explosion-Proof Test Chamber



    The battery explosion-proof box is mainly used for overcharge and overdischarge of the battery. During the charge and discharge test, the battery is placed in the explosion-proof box, and the external charge and discharge tester is connected to protect the operator and the instrument.



    Battery Explosion-Proof Test Chamber Standards



    • GB 31241 Safety Requirements for Lithium-Ion Batteries and Battery Packs for Portable Electronic Products
    • GB/T 18287 General Specification for Lithium-Ion Batteries for Cellular Phones (External Short Circuit Requirements)
    • GB/T 8897.6Primary Batteries - Part 6: Safety Requirements for Lithium Batteries
    • YD/T 2366.1 Lithium Iron Phosphate Battery Packs for Telecommunication - Part 1: Integrated Batteries
    • GB/T 21966 Safety Requirements for the Transport of Lithium Primary and Secondary Cells and Batteries
    • MT/T 1051 Lithium-Ion Storage Batteries for Miner's Lamps
    • YD 1268 Safety Requirements and Test Methods for Lithium Batteries and Chargers for Mobile Communication Handsets
    • GB/T 19521.11 Inspection Safety Code for Hazardous Properties of Dangerous Goods of Lithium Battery Packs
    • YDB 032 Standby Lithium-Ion Battery Packs for Telecommunication
    • UL 1662 Standard for Lithium Batteries
    • UL 2056 Household and Commercial Battery Packs
    • UN38.3 Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria, Part 3
    • IEC62133 Safety Requirements for Secondary Cells and Batteries Containing Alkaline or Other Non-Acid Electrolytes
    • IEC 62281 Safety of Lithium Primary and Secondary Cells and Batteries During Transport
    • IEC 60086 Primary Batteries - Part 6: Safety Requirements for Lithium Batteries



    Explosion Proof Battery Box Key Specification



    Model

    GT-I08

    Inner size

    500×500×500mm (W×D×H)

    External size

    W650×D700×H1550 mm (subject to design)

    Material

    Outward box: 1.5mm thick A3 steel plate with baking finish

    Interior box: SUS#201 stainless steel, 1.2mm thick

    Interlayer between chambers

    80mm thermal insulation layer between inner and outer chambers

    Inner chamber bottom

    An insulating Teflon plate is equipped in the test area, featuring effective resists fire , corrosion resistance, easy cleaning and prevention of external short circuit

    Control panel safety design

    The control panel is built-in, ensuring that the touchscreen and buttons cannot be accidentally pressed or bumped by external objects or the user's body, making it safer

    Wire lead hole

    1 reserved φ50mm test hole on one side of the equipment for relevant test wires to pass through

    Chamber door

    Fixed with high-strength hinges; equipped with at least 2 sets of explosion-proof locks for fastening

    Explosion-proof pressure relief device

    With exhaust and explosion-proof pressure relief function; a magnetically adsorbed pressure relief door (200×200mm) is installed at the rear of the protective chamber, which automatically opens under strong air flow impact and closes automatically to reduce explosion impact force

    Smoke extraction

    Induced draft fan: High-temperature resistant; rear smoke outlet diameter: 100 mm.

    Explosion-proof lighting design

    High-brightness explosion-proof LED light installed inside the door, illuminating the entire test space

    Chamber bottom

    4 universal casters for easy moving, stable parking and fixing

    Equipment weight

    Approx. 80kg

    Power supply

    AC 220V 50HZ

    Power

    50W
