battery drop tester

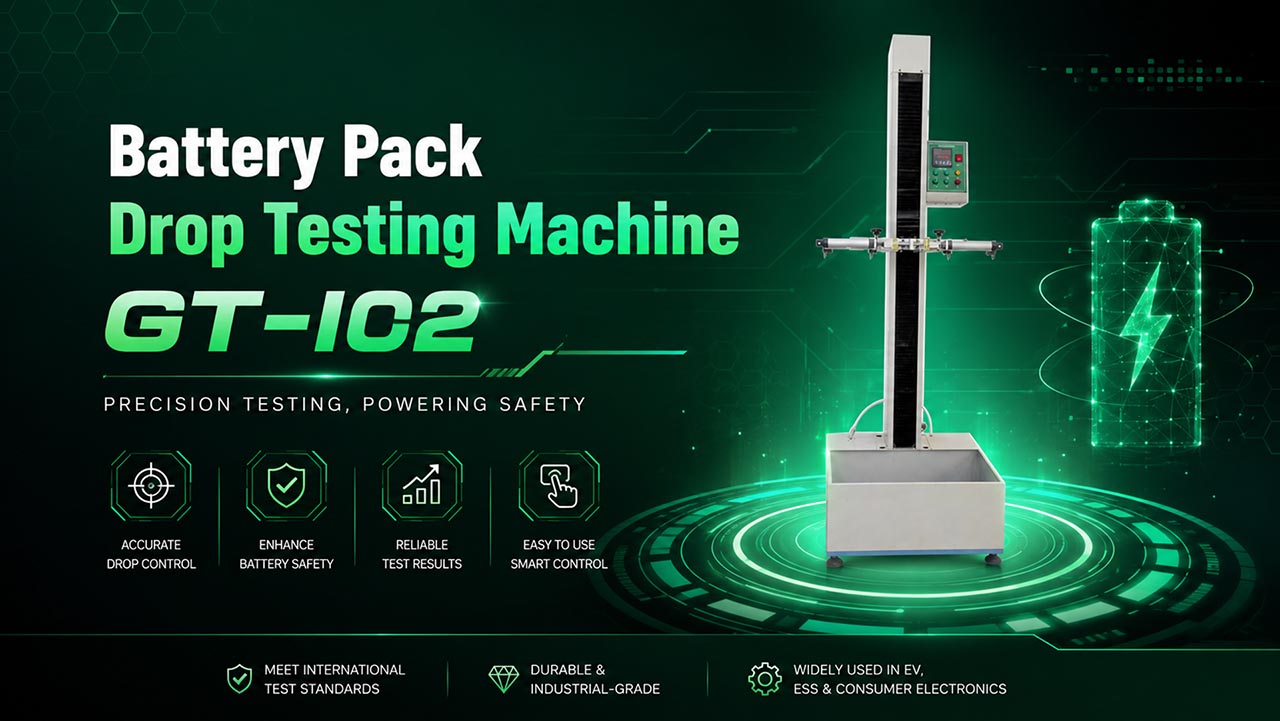

Battery Pack Drop Testing Machine GT-I02

This Battery Pack Drop Testing Machine is suitable for free fall testing of small consumer electronic products and components such as mobile phones (cell phones), mobile phone lithium batteries, walkie-talkies, electronic dictionaries, building intercom phones, CD/MD/MP3 players, etc.



Precision testing, powering safety

Accurate drop control

Enhance battery safety

Reliabletest results

Easy to usesmart control



  • Item No :

    GT-I02
  • Order(MOQ) :

    1
  • Battery Pack Drop Testing Machine GT-I02



    Main Features and Functions of Battery Pack Drop Testing Machine



    This battery drop tester adopts a pneumatic structure. The test specimen is placed in a dedicated fixture (with adjustable stroke) and clamped securely. Pressing the drop button releases the cylinder, and the test piece will undergo a free fall test.



    Battery Drop Tester Standards



    GB 31241-2022, UL 1642, IEC62133-2012, GB/T36276-2020



    Battery Testing Equipment Key Specification



    Model

    GT-I02

    Drop height

    300~1500mm (adjustable)

    Display Accuracy

    1mm

    Height error

    ±5mm

    Display Mode

    PID

    Maximum specimen weight

    10kg±100g

    Specimen Dimensions ( L×W )

    220×150 mm

    Drop test medium

    Steel plate

    Test Drop Point

    Free fall

    Drop method

    Pneumatic drop

    Lifting Method

    Electric lifting

    Operating Air Pressure

    <2 MPa (User supply air source)

    Machine dimensions ( W×D×H )

    650×560×1700mm

    Height Setting

    Encoder-displayed height, intelligent control

    (350–1500 digitally adjustable, very convenient for users)

    Power supply

    AC 220V±10%, 50HZ

    Power

    300W

    Weight

    Approx. 120
