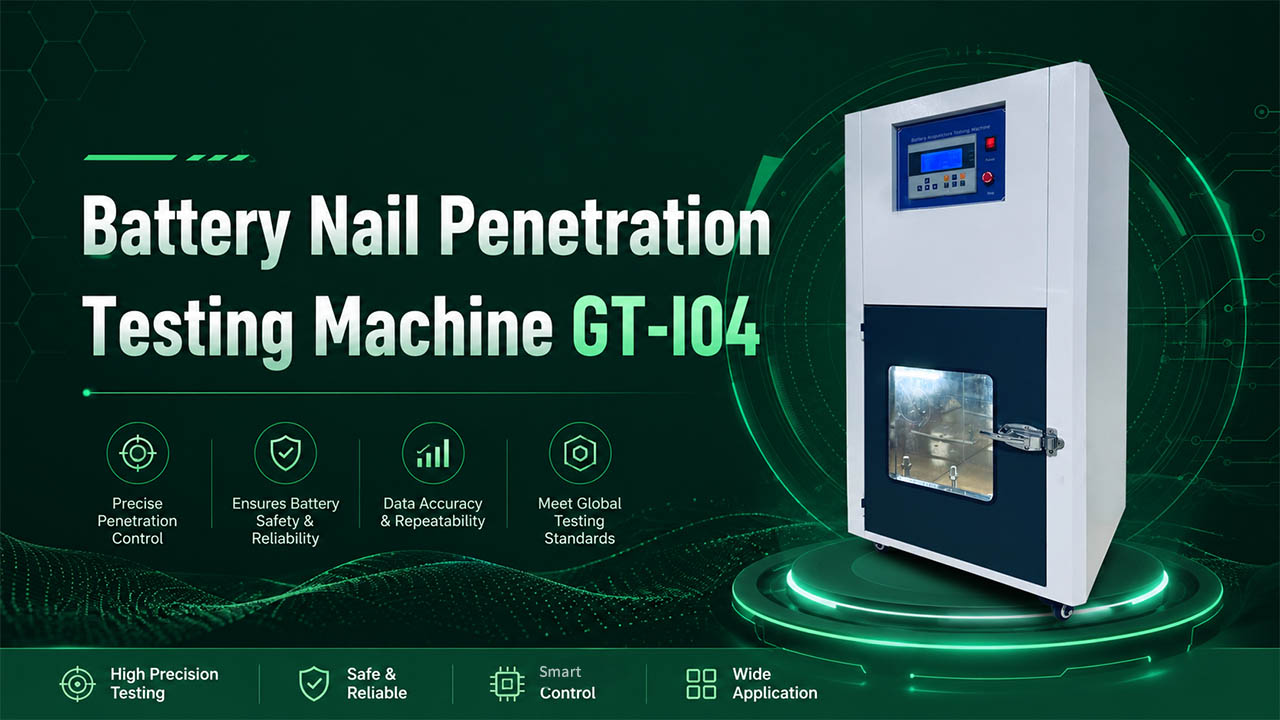

This Battery Nail Penetration Testing Machine is designed to simulate conditions where various types of batteries are subjected to sharp object penetration during use, transportation, storage, or disposal as household waste.The battery is considered qualified if no explosion or fire occurs during the test.
GB/T 18332.2, QC/T 743, YDT 2344.1, YDT 2344.2, QC/T 744
Item No :
GT-I04Order(MOQ) :
1
Nail penetration testing is a type of safety testing done to simulate internal short-circuiting. The sample battery is penetrated with a nail to simulate an internal short-circuit and verify that the battery does not catch fire or burst.
|
Model |
GT-I04 |
|
Pressure Range |
1KN ~ 300KG |
|
Force Value Error |
±1% |
|
Unit Conversion |
Kg/N/Lb |
|
Nail Penetration Speed Range |
1 ~ 40mm/s (adjustable) |
|
Speed Accuracy |
0.5mm/s |
|
Unit Conversion |
Kg/N/Lb |
|
Drive Method |
Pneumatic |
|
Inner Chamber Material |
SUS 201# stainless steel (1.2 mm thickness, reinforced; total thickness with outer chamber is 80 mm) |
|
Outer Chamber Material |
Powder-coated cold-rolled steel plate (1.5 mm thickness) |
|
Chamber Structure |
Vertical structure |
|
Nail Penetration Stroke |
0-200 mm |
|
Test Space(W*D*H) |
400×400×450 mm |
|
Tempered Glass Viewing Window |
A 300×300 mm double-layer tempered glass window is installed on the chamber door, equipped with a stainless steel explosion-proof protective mesh, allowing clear observation of the test process. |
|
Control Method |
PID integrated LCD control system; easy operation; allows real-time monitoring of speed, pressure, displacement, hold time, and test count, with automatic reset after test completion. |
|
High-Temperature Resistant Steel Needles |
Φ3 mm, Φ5 mm×100 mm, 3 pieces each |
|
Exhaust Port |
100 mm diameter, located at the upper rear of the chamber |
|
Explosion-Proof Pressure Relief Device |
Equipped with exhaust function to discharge large amounts of waste gas generated during testing;Also features an explosion-proof pressure relief function, consisting of a magnetically attached pressure relief door (200×200 mm) on the rear of the protective chamber, which automatically opens under strong airflow impact to mitigate |
|
Lighting Device |
High-brightness, energy-saving explosion-proof lamp installed inside the chamber to illuminate the entire test area for easy observation |
|
Exhaust System |
equipment can automatically exhaust the smoke through a duct when the test specimen generates smoke |
|
Base |
Equipped with 4 universal casters for easy movement and stable positioning |
|
Viewing Window Size |
300×300×10 mm (thick tempered explosion-proof glass) |
GESTER is the battery testing equipment manufacturer. If you are looking for the nail penetration test chamber for performance testing of lithium ion battery, lithium batteries, please visit the related page to get more information there.
