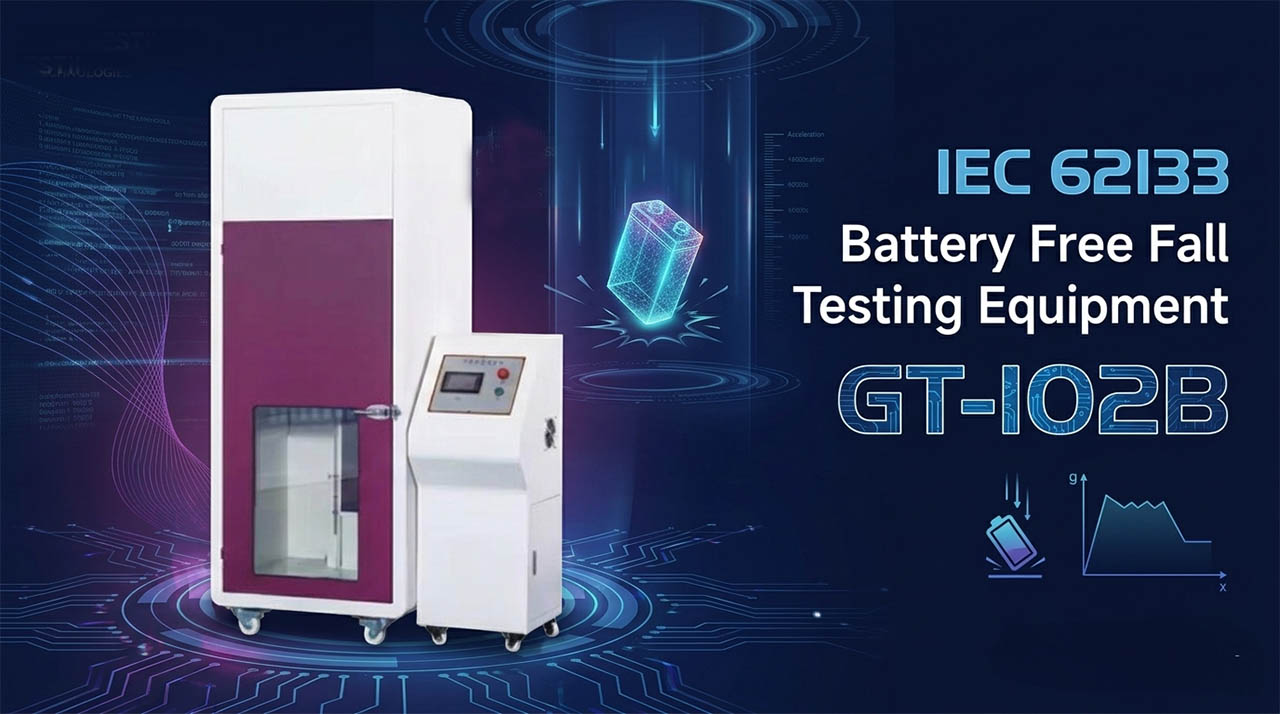

This battery drop tester is used to test the battery samples from different heights and different angles and fall freely on the falling bottom plates of different materials to test the safety performance of the battery.
At the same time, this lithium battery drop tester is also suitable for free fall test of mobile phone, walkie-talkie, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer motor products and parts.
According to the drop height required by the test, the free fall falls on the concrete slab or on the wooden board, and the drop height adjustable.
|
Model |
GT-I02B |
|
Maximum weight of test piece |
5kg±100g |
|
Drop height |
300~1500mm (adjustable) |
|
Height resolution |
0.1mm |
|
Height display accuracy |
1mm |
|
Drop height display |
PLC, minimum indication 1mm |
|
Control mode |
Height setting, drop, rise and other actions are set by the PLC controller |
|
Clamping method |
Air pressure adsorption type |
|
Lifting method |
Electric lifting |
|
Drop mode |
Automatic fall |
|
Drop floor material |
Concrete board, wood board steel sheet |
|
Drop angle |
Multi-angle (Ling, Angle, Face) |
|
Air pressure |
1MPa (customer-owned gas source) |
|
Floor size |
500×600×10mm |
|
Machine size |
600×700×1650mm |
|
Weight |
100kg |
|
Power source |
1∮, 220V, 3A, 660W |
|
Standard |
IEC 62133 |
High-Precision Climate Simulation for Reliable Material & Electronic Reliability Testing -This constant temperature humidity chamber features programmable control, wide temperature and humidity ranges, and complies with international standards. Main Features: ✔ Wide Testing Range: Temperature: -60°C to +150°C | Humidity: 20% to 98% RH. ✔ Smart Control: 7-inch programmable color touch screen controller with USB data export. ✔ Premium Components: Equipped with imported French Tecumseh compressor. ✔ International Standards: Fully complies with ISO, ASTM, IEC, JIS, BS.
Benchtop temperature and humidity test chamber delivers precise environmental control through stable temperature and humidity settings for conditioning of samples prior to testing. Its compact footprint allows it to be easily placed on a stand or workbench, perfectly suiting laboratories and testing areas where space is limited — without compromising build quality or testing performance.
Thermal Shock Test Chamber consists of two independent compartments. The thermal shock machine or material being tested is placed in a test basket or tray and then transferred between the hot and cold chambers. The transfer process is rapid, ensuring quick temperature changes that simulate real-world conditions. This enables manufacturers to evaluate the impact of temperature differentials on product integrity, performance, and reliability.
High Low Temperature Test Chamber is devices specifically designed to simulate extreme high- and low-temperature environments, enabling the assessment of the durability, functionality and performance of materials and components following prolonged exposure. Ideal for material durability testing in electronics, aerospace, and industrial applications.
Walk In Environmental Test Chamber, suitable for test instrumentation materials, electricians, electronic products, household appliances, auto parts, chemical coatings,various electronic components and parts of other related products are stored and transported under high temperature and low temperature environment. The adaptability test is used to evaluate its performance indexes.
Salt spray test chamber is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
The Battery Overcharge and Overdischarge Explosion-Proof Test Chamber GT-I08 is a specialized safety testing enclosure designed for evaluating battery performance under extreme charging and discharging conditions. Main Features: ✔ Comprehensive Safety Protection System ✔ Precision Temperature Management ✔ Durable Explosion-Proof Structural Design ✔ Real-Time Safety Monitoring ✔ Wide Compatibility & Easy Operation
This Battery Pack Drop Testing Machine is suitable for free fall testing of small consumer electronic products and components such as mobile phones (cell phones), mobile phone lithium batteries, walkie-talkies, electronic dictionaries, building intercom phones, CD/MD/MP3 players, etc. Precision testing, powering safety • Accurate drop control • Enhance battery safety • Reliabletest results • Easy to usesmart control
GESTER is the Professional Battery Nail Penetration Testing Machine manufacturer.
This Battery Nail Penetration Testing Machine is designed to simulate conditions where various types of batteries are subjected to sharp object penetration during use, transportation, storage, or disposal as household waste.The battery is considered qualified if no explosion or fire occurs during the test. Standards GB/T 18332.2, QC/T 743, YDT 2344.1, YDT 2344.2, QC/T 744
The battery squeeze and acupuncture integrated machine inspects the safety performance of the battery through the squeeze test or acupuncture test, and judges the test result through real-time test data (such as battery voltage, the highest temperature of the battery surface, and the pressure video data).
