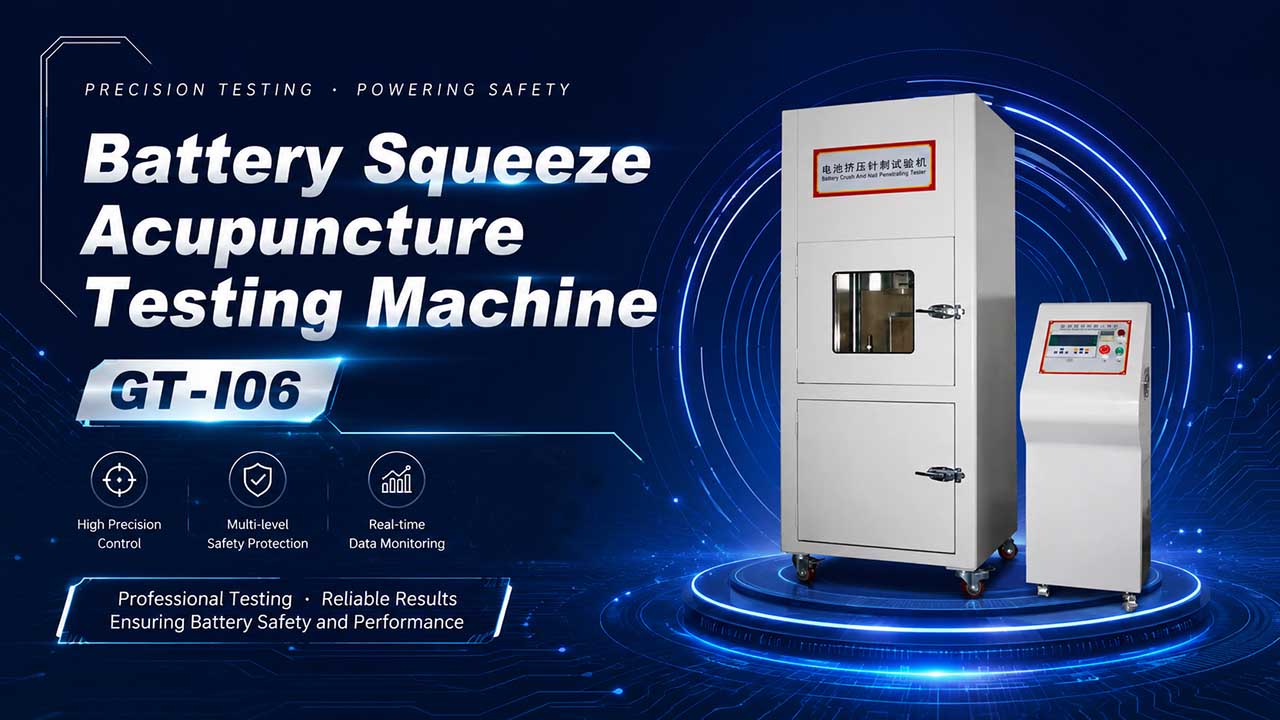

The battery squeeze and acupuncture integrated machine inspects the safety performance of the battery through the squeeze test or acupuncture test, and judges the test result through real-time test data (such as battery voltage, the highest temperature of the battery surface, and the pressure video data).
Item No :
GT-I06Order(MOQ) :
1
This Battery Extrusion Acupuncture Tester is suitable for simulating various types of lithium battery storage batteries in the transportation, use, storage and disposal of household waste, the battery is squeezed by external force, and sharp objects penetrate the situation, the test results are used to evaluate the battery safety performance.
|
Model |
GT-I06 |
|
Power transmission method |
Hydraulic Servo A) Two plates grip the battery B) When the tested sample is gripped by the two plates, it can begin to crush. |
|
The pressure |
13kN |
|
Accuracy of the force display |
0.1N |
|
Resolution |
1/10000 |
|
Compression Space |
W300×D300×H300mm(or custom with the battery size) |
|
Distance of Compression |
300mm |
|
Test speed |
0~100mm/s |
|
Holding time |
1s~9999h( arbitrary set) |
|
Cable port |
Diameter 50mm on the left side of the chamber |
|
Interior material |
A3 steel paint drying |
|
Exterior material |
SUS#304 |
|
Power |
380V, 50~60HZ, |
|
Dimension (mainframe) |
66×53×168cm |
|
Dimension (controller) |
55×35×100cm |
