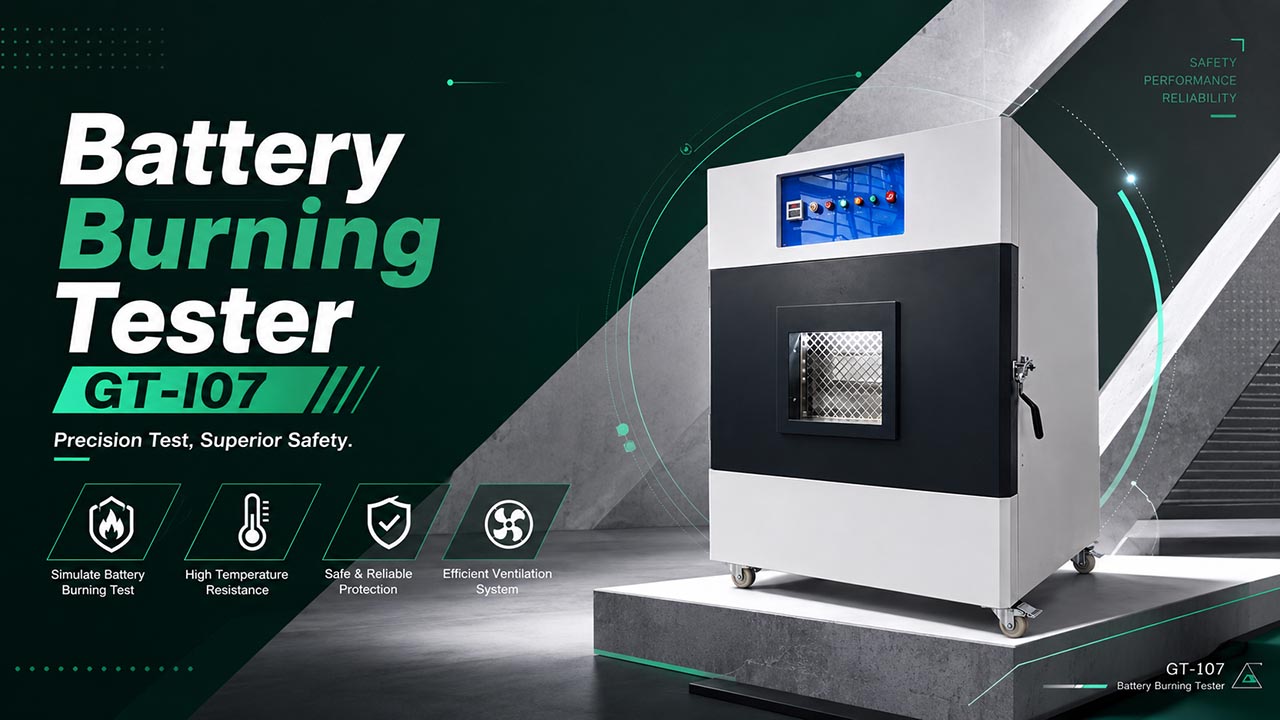

Battery Burning Tester GT-I07

Battery Burning Tester GT-I07

The Battery Burning Tester  features easy operation, safe and reliable use, and high accuracy, making it the most ideal specialized equipment for battery combustion and projection tests currently available.



  • Item No :

    GT-I07
  • Order(MOQ) :

    1
  • Battery Burning Tester GT-I07



    This Battery Burning Test Equipment is designed for battery flammability testing and is constructed in strict accordance with the UL 2054 testing standard.



    This Battery Burning Tester  is an essential piece of equipment for quality control and quality testing in various battery manufacturing enterprises and quality inspection departments.



    Battery Burning Test Chamber Standards



    UL1642-2005, UL2054-2005, SJ/T 11170-1998, SJ/T 11169-1998, GB/T 31241-2014



    Battery Fire Test Chamber Test Method



    Fix the wire mesh at a position 38 mm above the top of the burner. The mesh have 20 openings per 25.4 mm, with a wire diameter of 0.45 mm.

    Ignite the burner and observe the combustion of the battery until it explodes or is completely burned, record the duration of the combustion process simultaneously.

    Test Result: After the test, neither the individual components of the battery (excluding powdery residues) nor the battery as a whole shall penetrate the aluminum mesh.



    Battery Flammability Tester Key Specification



    Model

    I07

    Burner

    Bunsen burner, inner diameter of the tube: 0.375 inch (9.5 mm), length approx. 100 mm

    Flame Application Time

    0 ~ 999.9 s ± 0.1 s

    Flame After-burn Time

    0 ~ 999.9 s ± 0.1 s

    Flame Nozzle Position

    38mm between flame nozzle and battery placement platform

    Flame Height

    10~75±2mm

    Test Rod Diameter

    1/4 inch (6.35mm) × 14 inches (355.6mm)

    Test Hood Width

    24 inches (610±10 mm) × 14 inches (305±5 mm), octagonal

    Test Hood Height

    12 inches (305 ± 5 mm)

    Test Aluminum Mesh Diameter

    0.010 inch (0.25 mm); 16–18 Mesh

    Test Steel Wire Mesh Diameter

    20 mesh per inch (25.4 mm); Wire Diameter: φ0.45 mm

    Octagonal Mesh Cover

    Distance between opposite sides: 2 feet (610 ± 10 mm)

    Mesh height: 1 feet (305 ± 5 mm)

    Test Hole Diameter

    100 ± 2 mm

    Ignition Device

    Automatic Ignition

    Display Method

    PID

    Control Method

    Push-button control

    Combustion Gas Requirement

    High-purity Liquefied Petroleum Gas (User-supplied)

    Base

    Equipped with swivel casters

    Viewing Window

    300 × 300 × 10 mm (thick tempered explosion-proof glass)

    Timing Range

    0-99 (Switchable between Hours, Minutes, and Seconds)

    Inner Chamber Material

    SUS304 Stainless Steel

    Outer Chamber Material

    Powder-coated cold-rolled steel

    Smoke Exhaust Device

    Diameter 100 mm

    Dimensions (W*D*H)

    940 x 780 x 1400 mm

    Power Supply

    AC 220V, 50 Hz

    Power

    0.5KW
