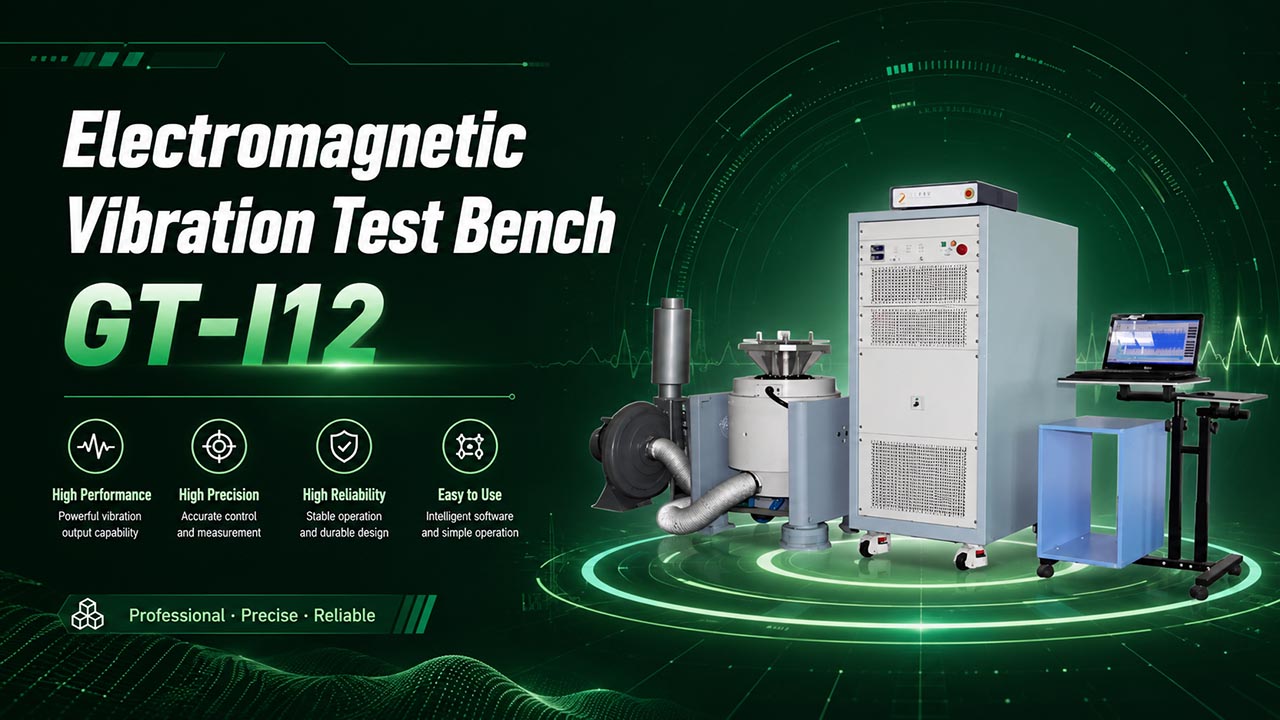

The Electromagnetic vibration tester is an economical, highly cost-effective sinusoidal vibration test equipment. It supports sine wave, frequency modulation, frequency sweeping. programmable operation,frequency multiplication, logarithmic mode and time control functions.
Item No :
GT-I12Order(MOQ) :
1
Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test.
Electromagnetic Vibration Test Bench completely according to the standard of battery related testing design, simulation under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.
Electromagnetic Vibration Table of the application scope is extremely broad, from circuit board, battery, plane, ship, rocket, missile, cars and home appliances and other industrial products.
|
Model |
GT-I12 |
|||
|
Electromagnetic excitation generator
|
Maximum sinusoidal excitation force |
300Kg.f peak |
||
|
Maximum random excitation force |
300Kg.f r.ms |
|||
|
Maximum impact excitation force |
600Kg.f peak |
|||
|
Frequency Range |
DC1～3000 Hz |
|||
|
Maximum displacement |
25 mm p-p |
|||
|
Maximum speed |
1.8m/s |
|||
|
Maximum acceleration |
100G(980 m/s2) |
|||
|
Maximum sinusoidal excitation force |
300Kg.f peak |
|||
|
F=M(kg) ×A(g)
|
5G(49m/s2) |
10G(98m/s2) |
20G(196m/s2) |
30G(294m/s2) |
|
57kg |
27kg |
12kg |
7kg |
|
|
Maximum load (dynamic circle) |
120 kg |
|||
High-Precision Climate Simulation for Reliable Material & Electronic Reliability Testing -This constant temperature humidity chamber features programmable control, wide temperature and humidity ranges, and complies with international standards. Main Features: ✔ Wide Testing Range: Temperature: -60°C to +150°C | Humidity: 20% to 98% RH. ✔ Smart Control: 7-inch programmable color touch screen controller with USB data export. ✔ Premium Components: Equipped with imported French Tecumseh compressor. ✔ International Standards: Fully complies with ISO, ASTM, IEC, JIS, BS.
Benchtop temperature and humidity test chamber delivers precise environmental control through stable temperature and humidity settings for conditioning of samples prior to testing. Its compact footprint allows it to be easily placed on a stand or workbench, perfectly suiting laboratories and testing areas where space is limited — without compromising build quality or testing performance.
Thermal Shock Test Chamber consists of two independent compartments. The thermal shock machine or material being tested is placed in a test basket or tray and then transferred between the hot and cold chambers. The transfer process is rapid, ensuring quick temperature changes that simulate real-world conditions. This enables manufacturers to evaluate the impact of temperature differentials on product integrity, performance, and reliability.
High Low Temperature Test Chamber is devices specifically designed to simulate extreme high- and low-temperature environments, enabling the assessment of the durability, functionality and performance of materials and components following prolonged exposure. Ideal for material durability testing in electronics, aerospace, and industrial applications.
Walk In Environmental Test Chamber, suitable for test instrumentation materials, electricians, electronic products, household appliances, auto parts, chemical coatings,various electronic components and parts of other related products are stored and transported under high temperature and low temperature environment. The adaptability test is used to evaluate its performance indexes.
Salt spray test chamber is essential for evaluating the corrosion resistance of metals, coatings, and other materials – ensuring that products meet stringent corrosion resistance standards and enhancing their reliability in real-world applications.
The Battery Overcharge and Overdischarge Explosion-Proof Test Chamber GT-I08 is a specialized safety testing enclosure designed for evaluating battery performance under extreme charging and discharging conditions. Main Features: ✔ Comprehensive Safety Protection System ✔ Precision Temperature Management ✔ Durable Explosion-Proof Structural Design ✔ Real-Time Safety Monitoring ✔ Wide Compatibility & Easy Operation
This Battery Pack Drop Testing Machine is suitable for free fall testing of small consumer electronic products and components such as mobile phones (cell phones), mobile phone lithium batteries, walkie-talkies, electronic dictionaries, building intercom phones, CD/MD/MP3 players, etc. Precision testing, powering safety • Accurate drop control • Enhance battery safety • Reliabletest results • Easy to usesmart control
GESTER is the Professional Battery Nail Penetration Testing Machine manufacturer.
This Battery Nail Penetration Testing Machine is designed to simulate conditions where various types of batteries are subjected to sharp object penetration during use, transportation, storage, or disposal as household waste.The battery is considered qualified if no explosion or fire occurs during the test. Standards GB/T 18332.2, QC/T 743, YDT 2344.1, YDT 2344.2, QC/T 744
The battery squeeze and acupuncture integrated machine inspects the safety performance of the battery through the squeeze test or acupuncture test, and judges the test result through real-time test data (such as battery voltage, the highest temperature of the battery surface, and the pressure video data).
