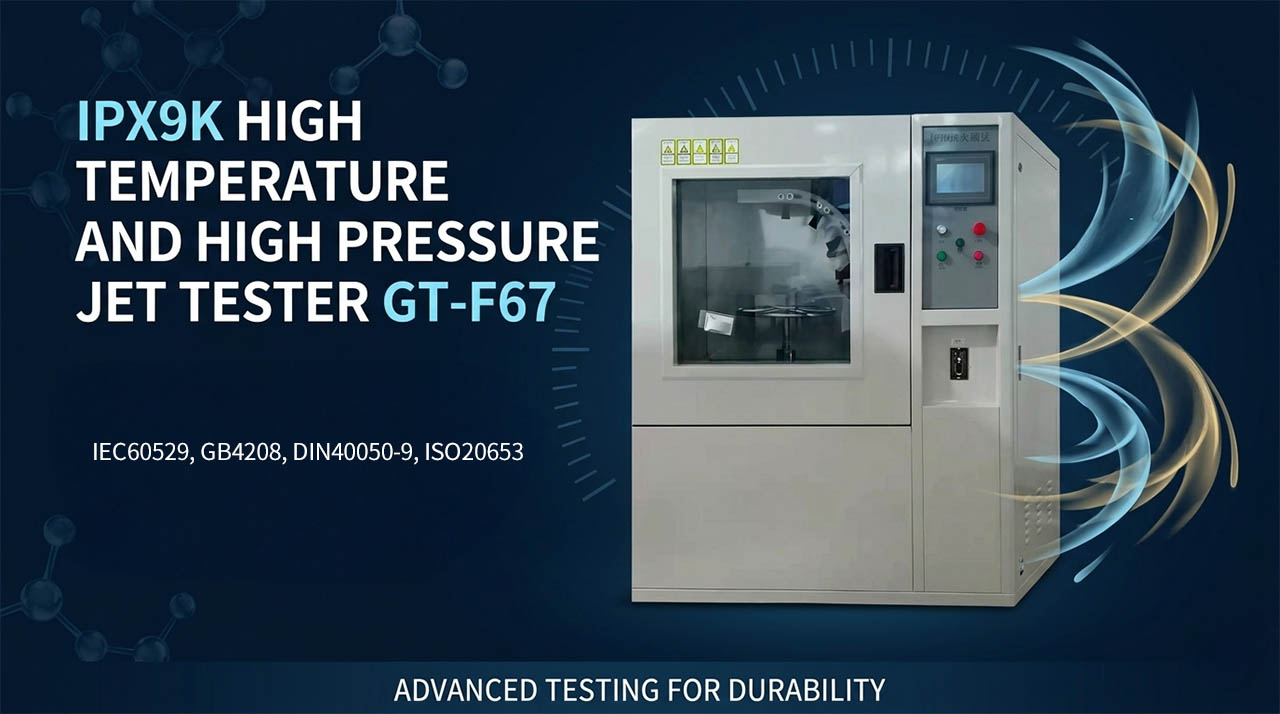

On the premise of complying with national standards and stable performance in all aspects, the IPX9K Water Spray Test Chamber is more practical and easy to control. It consists of a test bench, a water storage tank, a control box, a product dehydration buffer zone and a spray system.
Item No :
GT-F67Order(MOQ) :
1
This Rain Test Chamber is mainly used to test the physical and other related performances of vehicles such as passenger cars, buses, lamps, motorcycles and their components under the cleaning process conditions of high-pressure/steam jet cleaning. After the test, verify whether the product performance meets the requirements through inspection, so as to facilitate product design, improvement, verification and factory inspection.
This IP Rain Spray Test Chamber is made of high-quality materials and formed by the most advanced processing equipment in China at present. The shell is treated with stainless steel or plastic spraying, which is concise, beautiful and smooth with coordinated color matching and smooth natural arc design. The inner liner is made of imported high-quality stainless steel plate, and the sample rack and other accessories in the chamber are all made of stainless steel or copper materials with reasonable design and durability.
IEC60529, GB4208, DIN40050-9, ISO20653
The test function (IPX9K) is used for the inspection of electrical products for enclosure protection rating IEC (IP supplementary code - enhanced test), and manufactured in accordance with the relevant specifications in DIN40050 standard. It is a waterproof test chamber designed to simulate natural environment or human factors for the automobile and motorcycle parts industry, electrical and electronic industry.
| Model | GT-F67-500 | GT-F67-1000 | GT-F67-1500 |
| Capacity | 500L | 1000L | 1500L |
| Max Specimen Size(mm) | 200×200×200 | 350×350×350 | 500×500×500 |
| Turntable diameter(mm) | 300 | 400 | 600 |
| Jet water temperature | 80℃±5℃ | ||
| Water spray flow rate | 14～16 L/min | ||
| Water spray distance | 100～150 mm | ||
| Pipe diameter | 3/8 inch | ||
| Jet water pressure | 80～100bar (8000～10000kPa), 100kgf/cm² | ||
| Water spray angle and time | 0°, 30°, 60°, 90°; 30 seconds of water spray at each angle | ||
| Turntable load capacity | 20kg | ||
| Nozzle | made of 304 stainless steel, 4 pcs | ||
| Nozzle orifice diameter | 1.6mm | ||
| Turntable rotation speed | 1～7r/min | ||
Environmental conditions: Temperature 20℃～30℃, relative humidity ≤85％RH
Power supply: AC380V 50HZ three-phase five-wire system + protective ground wire; the user is required to configure an air or power switch with corresponding capacity for the equipment at the installation site, and the switch must be exclusively used for this equipment.
Power supply capacity: The grounding resistance of the protective ground wire is less than 4Ω; the user is required to configure an air or power switch with corresponding capacity for the equipment at the installation site, and the switch must be exclusively used for this equipment.
Power: Approx. 12KW (no-load)
Safety protection devices: Phase sequence protection, leakage protection, alarm sound prompt.
