Do you need an IPX test chamber for your product compliance operations? Then IP Waterproof test chambers will work great for you since they simulate dripping, splashing, jetting and immersion water conditions to evaluate water-resistant performance of product enclosures. This article will explore the various IPX test chambers, their uses, and how they improve testing efficiency and precision in different sectors.
An IP Waterproof test chamber is environmental testing equipment that is used in water ingress testing operations to simulate real-world water exposure conditions on test samples. It has adjustable spray, dripping or immersion systems capable of making repeatable, standard-compliant tests which are usually done following IEC 60529 and GB 4208 standards. IPX test chambers are widely used across multiple industries for splash simulation, rain spray testing, and immersion validation on electrical, electronic and mechanical components. The use of an IPX test chamber can result in getting reliable test data which enhance product safety and market compliance of mechanical and electrical partsGester. A rain spray chamber is commonly used when controlled water exposure and repeatable spray conditions are required.
The IP rating defines the protection level of equipment enclosures against water ingress under defined test conditions. Each IP grade corresponds to a specific water exposure scenario, as outlined below.
| IP Rating | Water Ingress Protection Description | Standard Test Condition |
| IPX1 | Protection against vertically falling water drops | Vertical dripping test; 10 min test duration |
| IPX2 | Protection against vertically falling water drops when enclosure tilted up to 15° | Dripping test with sample tilted 15°; 10 min test duration |
| IPX3 | Protection against spraying water at angles up to 60° from vertical | Oscillating spray tube, water spray from ±60° vertical |
| IPX4 | Protection against splashing water from any direction | Oscillating spray tube, splash water from all directions |
| IPX5 | Protection against low‑pressure water jets from any direction | 6.3 mm nozzle, low‑pressure water jet spray from all directions |
| IPX6 | Protection against high‑pressure water jets from any direction | 12.5 mm nozzle, high‑pressure water jet spray from all directions |
| IPX6K | Protection against enhanced high‑pressure water jets | Special high‑pressure jet nozzle for heavy‑duty applications |
| IPX7 | Protection against temporary immersion in water | Immerse sample in 1 m water depth for 30 minutes |
| IPX8 | Protection against continuous immersion in water | Continuous submersion under specified water depth and time |
| IPX9K | Protection against high‑temperature and high‑pressure water jets | 80 °C hot high‑pressure water jet washing from multiple angles |
Here are different types of GESTER IP Waterproof rain-spray testers, each serving specific applications in waterproof compliance testing:
GT-F60 IPX3 & IPX4 rain test chambers are precision oscillating-tube spray units built for IPX3 and IPX4 splash-resistance verificationGester. They are also intended for automotive lighting, on-board electronics and outdoor electrical housing testing against rain and splashing water. They adopt PLC touch-screen control, stepper-motor driven swing pipe and rotating turntable with adjustable swing angles and test duration, which can be configured according to product dimension and test specification GESTER GT-F60 rain test chambers can be considered one of the targeted testing tools because of their good repeatability and closed-loop water filtration system for low water consumptionGester. This makes them suitable for both general-purpose quality inspection and certification-grade waterproof spray testing used in manufacturing. An ipx4 rain test chamber can be used for products requiring controlled splash and rain exposure during IPX4 testing.
GT-F61 IPX1234 rain test chambers are multi-function test units which realistically simulate dripping, raining and splashing environments within single equipment housing. They are also intended for validating consumer-grade devices that require IPX1 through IPX4 certification. They have integrated dripping mechanism and oscillating spray assemblies with stable running performance and straightforward operator controls. GT-F61 test chambers stand out for their practicality, making them suitable for in-house quality control and batch-sample waterproof verification in manufacturing workshops. These rain test chambers can support different waterproof validation requirements within manufacturing environments.
GT-F62 IPX123456 horizontal rain spray test chambers are all-in-one multi-grade testing tools that are used to complete IPX1 through IPX6 waterproof evaluations within one machine unit. These testers come with multiple interchangeable calibrated nozzles and swing-tube assemblies; it is possible to use them to perform dripping, splashing and powerful water-jet tests for diverse sample sizes. These are used for horizontal as well as vertical sample positioning operations. Multi-grade GT-F62 rain spray chambers are critical tools in the automotive and electronics industries as precision and test repeatability are paramountGester. Once you select GT-F62 multi-grade rain spray test chamber for your specific intention, it is possible to achieve exact test-condition profiles fully matching international standard requirements. A rain spray test chamber such as GT-F62 can therefore accommodate multiple water ingress testing conditions in one unit.
GT-F63 IPX56 high-pressure waterproof test chambers are dedicated test tools that are used to deliver defined high-volume water jets onto product enclosures. These testers are able to execute both IPX5 low-pressure jet and IPX6 high-pressure jet evaluations and reduce reliance on multiple separate test devices occupying extra laboratory floor space. Through the use of calibrated jet nozzles, as well as motor-driven rotating test turntables, operators can carry out numerous heavy-duty product-certification applications. A GT-F63 IPX56 test chamber perfectly supports reliability validation for electrical cabinets, motorcycle components and outdoor lighting products. The equipment can also be integrated into testing workflows where an industrial rain test chamber is required for larger or more demanding product applications.
GT-F64 IPX7 water immersion testers are tank-style tools used during waterproof validation operations to simulate temporary water submersion of test samples under specified water depth, and feature customizable immersion-tank dimensions compared to other test equipment. You can consistently control immersion depth and test holding time. GT-F64 IPX7 water immersion testers can be handy when working on portable waterproof-grade consumer devices and outdoor sealed enclosures. You can utilize the flexibility of custom-built immersion tanks with GT-F64 when working on sealed-part products to get more test throughput in less time whilst completing desired immersion-validation workflows.
GT-F65 IPX78 water immersion pressure testers are employed in waterproof-testing operations with the primary function of generating controlled pressurized underwater-immersion environments for test specimens. They create fully sealed stainless-steel water-filled tank environments that can be configured to test both short-term IPX7 temporary submersion and long-duration IPX8 continuous underwater exposure. GT-F65 immersion-pressure testers are heavy-duty tank-type testing tools built with pressure-resistant housing, automatically maintaining target water pressure and immersion depth. This way, you are able to recreate immersion environments matching precise required-measurement specifications. Therefore, components fitted with advanced sealing structures can undergo rigorous deep-water-resistance precision validation.
Delivering enhanced heavy-duty water-jet test conditions for IPX6K rating can be achieved by using GT-F66 IPX6K horizontal rain testers. They are often applied in rain-spray-testing workflows for heavy-duty equipment enclosures and automotive aftermarket accessories. There are dedicated calibrated nozzle sets for GT-F66 IPX6K test tools, giving you an opportunity to select hardware depending on project specifications. With the help of GT-F66 IPX6K rain testers, you are able to run accurate high-intensity jet-test profiles which improve validation for enclosure design and component functional performance. This type of ipx6k test chamber is designed for applications involving demanding water-jet exposure.
GT-F67 IPX9K high-temperature and high-pressure jet testers are used to apply hot high-pressure water jets onto sample surfaces for simulating high-temperature high-pressure washing conditions such as automotive steam-cleaning scenarios. Their heavy-duty pump and integrated heating system permit reliable testing under harsh simulated cleaning environments. The unit consists of a test bench, water storage tank, control box, product dehydration buffer zone and multi-angle spray system. Among these applications include validating engine-bay and under-chassis automotive parts against hot high-pressure jet washing. With the appropriate GT-F67 IPX9K jet tester, your highest-grade waterproof features would be tested correctly, allowing for more reliable performance verification of your assemblies. An ipx9k waterproof test chamber can be used where high-temperature and high-pressure water exposure needs to be simulated.

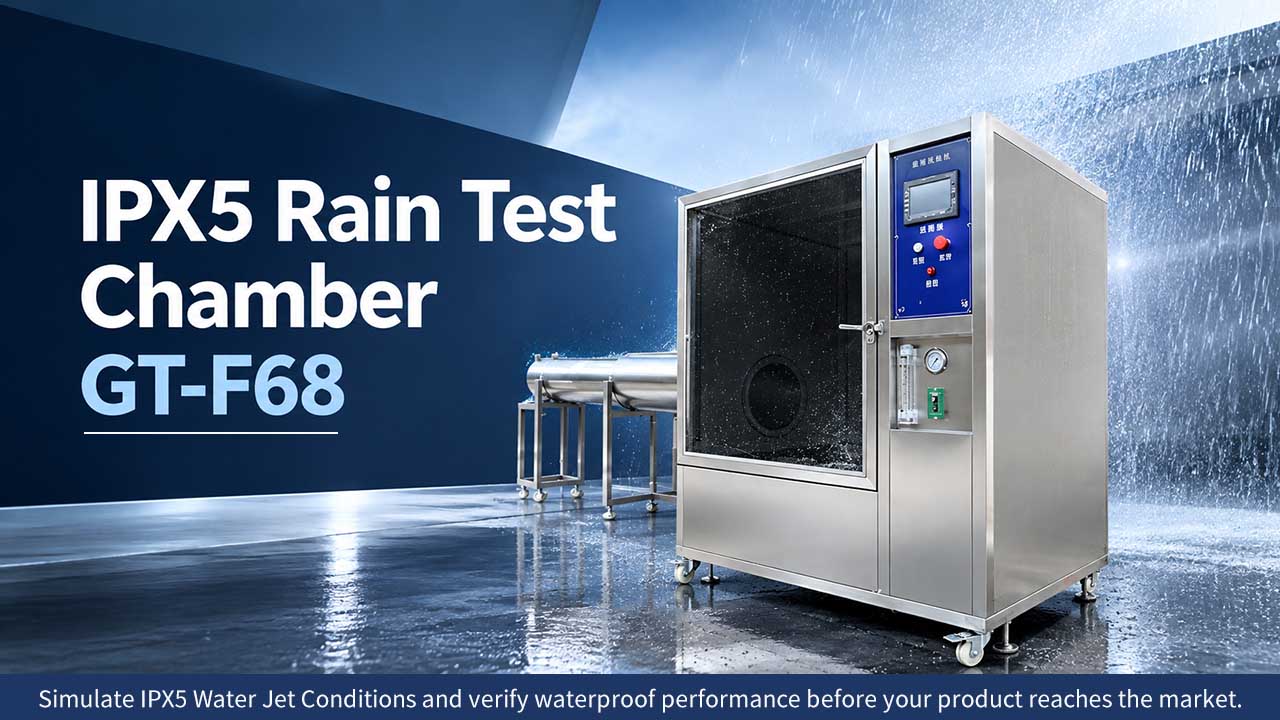

GT-F68 IPX5 rain test chambers are specialized test units built for standalone IPX5 low-pressure water-jet waterproof-performance assessment. Simulating real-world water-jet conditions, this tester is equipped with built-in water reservoir and stainless-steel circulation pump for continuous stable water flow throughout testing. Its spray-nozzle assembly and rotating turntable ensure uniform multi-directional water exposure across sample surfaces. GT-F68 serves product development, quality-control, compliance-verification and final-inspection workflows. Built in compliance with GB 4208 and GB/T 2423.38 standards, this chamber suits electronics, electrical components, lamp assemblies, electrical cabinets, automotive and motorcycle-part testing. A rain testing machine such as GT-F68 can provide controlled water-jet exposure for these applications.
Test Condition Geometry & Calibration: IP Waterproof rain-spray testers have various shapes of nozzles, oscillating swing tubes and immersion tanks designed especially for different IP-rating applications. It further delivers stable water flow, adjustable pressure and controlled temperature during testing and improves efficiency by providing features that assist in water circulation and accurate reproduction of designated standard-test conditions.
Material Composition: A majority of GESTER IP Waterproof rain-spray testers are constructed of SUS304 stainless-steel material for chamber interiors and main wetted componentsGester. Stainless steel is mechanically tough, corrosion-resistant, has superior rust resistance making them ideal for long-duration water-recirculating laboratory-testing environments.
Versatility: Many IP Waterproof rain-spray testers such as GT-F62 multi-grade IPX1-IPX6 models support quick-swap nozzle groups and adjustable test-parameter sets making them multipurpose and applicable for different product sizes and multiple IP-rating certification-tests. This versatility is also useful when a rain spray chamber needs to accommodate different product configurations.
Precision: With respect to nozzle dimension, water-circulation-system performance and chamber-material quality, IP Waterproof rain-spray testers are made to work accurately with strictly-defined dripping, spray and jet parameters, and this is mostly the case for applications requiring exact compliance for enclosure-sealing validation.
Durability: Quality IP Waterproof rain-spray testers are built to survive continuous water-circulation-testing cycles with high corrosion-resistance and deformation-resistance, this also minimizes component-replacement frequency hence improving laboratory overall productivity.
Ease of Use: Most of the IP Waterproof rain-spray testers are easy to operate and fit within common laboratory setups, equipped with PLC touch-screen control panels, also easy for skilled and entry-level operators to configure and run test cycles GESTER.
Water Circulation & Filtration: An important feature of rain-spray test equipment is integrated water-circulation and filtration system, so the testing chamber is designed in such a way that water consumed during testing can be recycled and filtered to a great extent, which increases operating economy and lessens the chance of nozzle blockage of the test equipment GESTER.
IP Waterproof rain-spray testers perform a pivotal role in a number of industries making the waterproof-validation and compliance-checking processes much more accurate. Below are some key functions across several industries:
As demonstrated, there is a wide scope of different industries and applications for IP Waterproof rain-spray testers because product-testing processes requiring high accuracy and test repeatability. When considering the specific applications of this test equipment, it becomes easier for you as manufacturers and lab operators to fine-tune your compliance operations and achieve the desired quality-control level.
